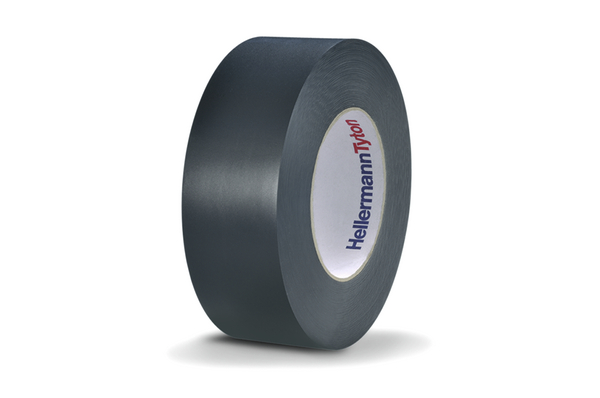

Insulation Tape 38 mm x 33 m x 0.25 mm black
Art.-No. 710-00451
| HTAPE-FLEX25-38x33-PVC-BK
|
Details
- Vinyl film coated with high quality rubber adhesive
- Extra high material thickness
- Highly resistant to sun, water, oil, acids, alkalies, corrosive chemicals
- Used for insulation, protection, fixing, maintenance and more
- Superior vinyl tape with excellent all-weather performance
- Flame retardant according to UL 510 Standard
Request your individual offer now
Request quote
More products in this product group:
| Application | Primary electrical insulation for all wire and cable splices up to 1 kV. Protective jacketing for low, medium and high voltage splices. Wrapping of wire harnesses and cables. Used for indoor and outdoor applications. |
| Colour | Black (BK) |
| Local order number | HTAPE-FLEX25-38x33 |
| Material | Polyvinylchloride (PVC) |
| PART DESCRIPTION | HTAPE-FLEX25-38x33-PVC-BK |
| Pack Cont. | 33m |
| Package Content packed in | Reel |
| Product Family | HelaTape Flex 25 |
| Product Group | Vinyl Electrical Tapes – Insulating Tape for Higher Mechanical Requirements |
| Short Description | Insulation Tape 38 mm x 33 m x 0.25 mm black |
| Type | HTAPE-FLEX25-38x33 |
Download
| Adhesion to Backing | 2.6N/10 mm |
| Adhesion to Steel | 2.6N/10 mm |
| Breaking Strength | 46N/10 mm |
| Dielectric Strength | 45kV/mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Elongation at break | 240 % |
| Hazardous Goods | No |
| Insulating (Yes/No) | Yes |
| Operating Temperature | -10 °C to +90 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Shelf Life | 5 years |
| Specifications |
|
| Specifications | UL 510 |
| Suitable for high voltage (Yes/No) | No |
| Tensile Strength | 46N/mm² |
| UL OCD link | Link |
| UL-File Number | E490183 |
| UV-Stabilised | No |
|
|
|
| Country of Origin | CN |
| Customs Number | 39191012 |
| GTIN-13 / EAN | 4031026543024 |
| Packaging 1 - Height (m) | 0.038m |
| Packaging 1 - Length (m) | 0.11m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | Reel |
| Packaging 1 - Volume (m³) | 0.00046m³ |
| Packaging 1 - Weight (kg) | 0.42kg |
| Packaging 1 - Width (m) | 0.11m |
| Packaging 3 - Height (m) | 0.205m |
| Packaging 3 - Length (m) | 0.455m |
| Packaging 3 - Qty | 40 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0215m³ |
| Packaging 3 - Weight (kg) | 17.3kg |
| Packaging 3 - Width (m) | 0.23m |
| Packaging 4 - Height (m) | 0.76m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 720 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.73m³ |
| Packaging 4 - Weight (kg) | 332.4kg |
| Packaging 4 - Width (m) | 0.8m |
| Storage Temperature | +23 °C |
| Storage conditions | 65% relative humidity. |
