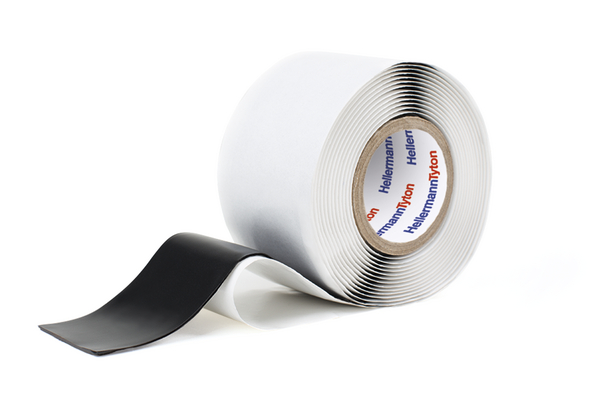

Self-amalgamating low voltage vinyl-mastic tape 100 mm x 3 m black
Art.-No. 711-00304
| HTAPE-POWER 670-VM-PVC/IIR-BK
|
Details
- Easy to apply vinyl mastic tape
- Self-adhesive application - without stretching
- Mastic layer is very sticky and provides excellent moisture sealing
- Vinyl top layer provides additional protection
- Performs continuously. Even at low temperatures
- Primary insulation up to 1 kV
- Applicable to all extruded cable insulations
- UV and weather resistant
Request your individual offer now
Request quote
More products in this product group:
| Application | HellermannTyton offers a wide range of products for bundling, insulating, sealing and labeling cables and wires. PVC insulation tapes for low-voltage applications are available in various colors and dimensions. Self-welding, rubber-based tapes are ideal for insulating and sealing cables and connections from low to high and extra-high voltage ranges. HelaTape Tex fabric tapes are versatile and easy to write on. |
| Colour | Black (BK) |
| Material | Polyvinylchloride (PVC), Isobutene-Isoprene-Rubber (butyl rubber) (IIR) |
| PART DESCRIPTION | HTAPE-POWER 670-VM-PVC/IIR-BK |
| Pack Cont. | 3m |
| Package Content packed in | Reel |
| Product Family | HelaTape Power 670 VM |
| Product Group | Self-amalgamating Tapes – Vinyl Mastic Tape |
| Short Description | Self-amalgamating low voltage vinyl-mastic tape 100 mm x 3 m black |
| Type | HTAPE-POWER 670-VM |
Download
| Dielectric Strength | 19.7kV/mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Elongation at break | 200 % |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Insulating (Yes/No) | Yes |
| Intermittent Operating Temperature | +95°C |
| Operating Temperature | -30 °C to +80 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Shelf Life | 5 years |
| Specifications |
|
| Suitable for high voltage (Yes/No) | No |
| Tensile Strength | 16N/mm² |
| UV-Stabilised | Yes |
| Volume Resistance | 10¹² Ω cm |
| Water Absorption | 0.9% |
|
|
|
| Country of Origin | CN |
| Customs Number | 39191012 |
| GTIN-13 / EAN | 4031026431147 |
| Packaging 1 - Height (m) | 0.097m |
| Packaging 1 - Length (m) | 0.115m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | pcs. |
| Packaging 1 - Volume (m³) | 0.00108m³ |
| Packaging 1 - Weight (kg) | 0.621kg |
| Packaging 1 - Width (m) | 0.097m |
| Packaging 3 - Height (m) | 0.245m |
| Packaging 3 - Length (m) | 0.4m |
| Packaging 3 - Qty | 16 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0206m³ |
| Packaging 3 - Weight (kg) | 10.432kg |
| Packaging 3 - Width (m) | 0.21m |
| Packaging 4 - Height (m) | 1.125m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 640 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.08m³ |
| Packaging 4 - Weight (kg) | 438.28kg |
| Packaging 4 - Width (m) | 0.8m |
| Storage Temperature | +23 °C |
| Storage conditions | 65% relative humidity. |
