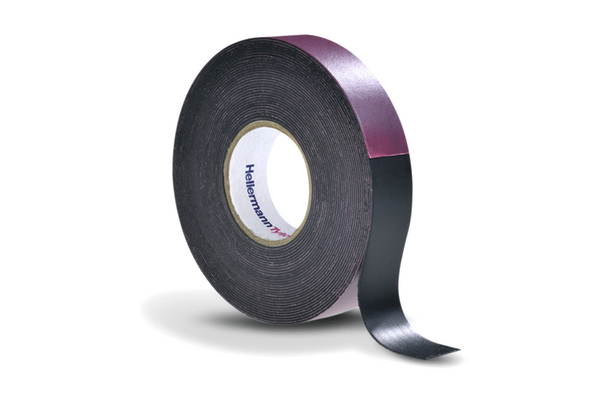

Self-amalgamating low voltage rubber tape 38 mm x 6,7 meter black
Art.-No. 711-10201
| HTAPE-POWER600-38x6.7-NR-BK
|
Details
- Self-amalgamating low voltage rubber tape
- Primary insulation at not more than 1 kV Easily suitable to irregular shapes and surfaces
- Compatible with all extruded dielectric cable insulations
- Weather resistant and flame retardant according to UL 510
- Recommended use in conjunction with HelaTape Flex for mechanical protection
Request your individual offer now
Request quote
More products in this product group:
| Application | HellermannTyton offers a wide range of products for bundling, insulating, sealing and labeling cables and wires. PVC insulation tapes for low-voltage applications are available in various colors and dimensions. Self-welding, rubber-based tapes are ideal for insulating and sealing cables and connections from low to high and extra-high voltage ranges. HelaTape Tex fabric tapes are versatile and easy to write on. |
| Colour | Black (BK) |
| Material | Natural Rubber (NR) |
| PART DESCRIPTION | HTAPE-POWER600-38x6.7-NR-BK |
| Pack Cont. | 6.7m |
| Package Content packed in | Reel |
| Product Family | HelaTape Power 600 |
| Product Group | Self-amalgamating Tapes – Low Voltage Rubber Tape |
| Short Description | Self-amalgamating low voltage rubber tape 38 mm x 6,7 meter black |
| Type | HTAPE-POWER600-38x6.7 |
Download
| Dielectric Strength | 14kV/mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Elongation at break | 300 % |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Insulating (Yes/No) | Yes |
| Intermittent Operating Temperature | +95°C |
| Operating Temperature | -40 °C to +80 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Shelf Life | 5 years |
| Specifications | UL 510 |
| Specifications |
|
| Suitable for high voltage (Yes/No) | No |
| Tensile Strength | 2N/mm² |
| UL OCD link | Link |
| UL-File Number | E490183 |
| UV-Stabilised | No |
|
|
|
| Country of Origin | CN |
| Customs Number | 39191012 |
| GTIN-13 / EAN | 4031026548821 |
| Packaging 1 - Height (m) | 0.038m |
| Packaging 1 - Length (m) | 0.1m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | pcs. |
| Packaging 1 - Volume (m³) | 0.00038m³ |
| Packaging 1 - Weight (kg) | 0.306kg |
| Packaging 1 - Width (m) | 0.1m |
| Packaging 3 - Height (m) | 0.17m |
| Packaging 3 - Length (m) | 0.41m |
| Packaging 3 - Qty | 32 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0153m³ |
| Packaging 3 - Weight (kg) | 10.285kg |
| Packaging 3 - Width (m) | 0.22m |
| Packaging 4 - Height (m) | 1.165m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 1344 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.118m³ |
| Packaging 4 - Weight (kg) | 452.98kg |
| Packaging 4 - Width (m) | 0.8m |
| Storage Temperature | +23 °C |
| Storage conditions | 65% relative humidity. |
