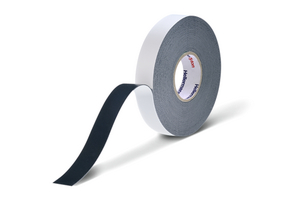

Self Amalgamating Tape 0.76mm thick / 19mm x 9.1m black
Art.-No. 711-00401
| HTAPE-POWER810-EPR-BK
|
Details
This product is not available anymore.
Alternative product available
- Self-amalgamating tape for insulating and jacketing splices up to 69 kV
- Halogen-free with outstanding corona, ozone and UV-resistance
- Ideal for sealing of terminations, electrical connections and cable jacket repair
- Void-free, electrically stable layering
- Protects e.g. bus bars against corrosion and contact
- Excellent moisture, corrosion and chemical resistance
- Compatible with all extruded cable insulations
Request your individual offer now
Request quote
More products in this product group:
| Application | HellermannTyton offers a wide range of products for bundling, insulating, sealing and labeling cables and wires. PVC insulation tapes for low-voltage applications are available in various colors and dimensions. Self-welding, rubber-based tapes are ideal for insulating and sealing cables and connections from low to high and extra-high voltage ranges. HelaTape Tex fabric tapes are versatile and easy to write on. |
| Colour | Black (BK) |
| Material | Ethylene Propylene Rubber (EPR) |
| PART DESCRIPTION | HTAPE-POWER810-EPR-BK |
| Pack Cont. | 9.1m |
| Package Content packed in | Reel |
| Product Family | HelaTape Power 810 |
| Product Group | Self-amalgamating Tapes – High Voltage Rubber Tape |
| Short Description | Self Amalgamating Tape 0.76mm thick / 19mm x 9.1m black |
| Type | HTAPE-POWER810 |
Download
| Dielectric Strength | 30kV/mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Elongation at break | 750 % |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Insulating (Yes/No) | Yes |
| Intermittent Operating Temperature | +130°C |
| Operating Temperature | +90 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Specifications |
|
| Suitable for high voltage (Yes/No) | Yes |
| Tensile Strength | 2.4N/mm² |
| UV-Stabilised | Yes |
| Volume Resistance | 10¹⁶ Ω cm |
| Water Absorption | 0.06% |
| Country of Origin | ES |
| Customs Number | 40082190 |
| GTIN-13 / EAN | 4031026405858 |
| Packaging 1 - Height (m) | 0.02m |
| Packaging 1 - Length (m) | 0.12m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00029m³ |
| Packaging 1 - Weight (kg) | 0.213kg |
| Packaging 1 - Width (m) | 0.12m |
| Packaging 3 - Height (m) | 0.105m |
| Packaging 3 - Length (m) | 0.39m |
| Packaging 3 - Qty | 45 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0152m³ |
| Packaging 3 - Weight (kg) | 10.085kg |
| Packaging 3 - Width (m) | 0.37m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 1890 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Weight (kg) | 444.57kg |
| Packaging 4 - Width (m) | 0.8m |
