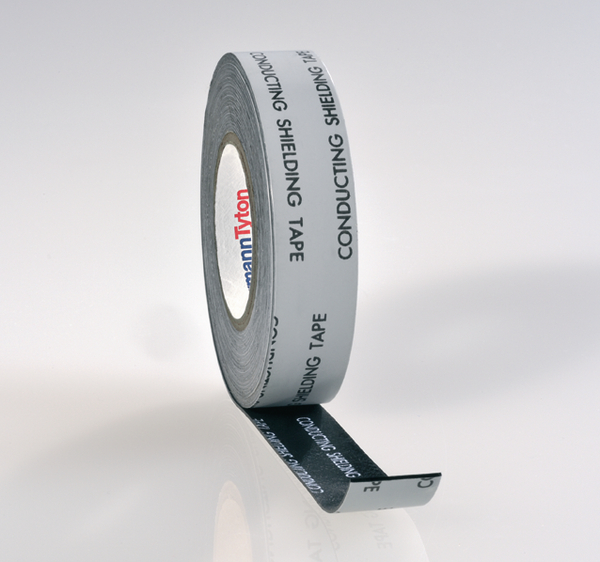

EPDM Electrical Insulation Tape 0.76mm thick / 19mm x 4.6m black
Art.-No. 711-00000
| HTAPE-SHIELD310-EPR-BK
|
Details
This product is not available anymore.
Alternative product available
- Self-amalgamating conducting tape made from ethylene propylene rubber
- Provides good conducting properties
- Prevents partial discharges
- Moisture and UV-resistant and easy to apply
- Guidance and/or finishing of the semiconductive layer in case of repairs and connections of medium to high voltage cables.
Request your individual offer now
Request quote
More products in this product group:
| Colour | Black (BK) |
| Material | Ethylene Propylene Rubber (EPR) |
| PART DESCRIPTION | HTAPE-SHIELD310-EPR-BK |
| Pack Cont. | 4.6m |
| Package Content packed in | Reel |
| Product Family | HelaTape Shield 310 |
| Product Group | Conductive Tapes – Electrical Semi-Conducting Tape |
| Short Description | EPDM Electrical Insulation Tape 0.76mm thick / 19mm x 4.6m black |
| Type | HTAPE-SHIELD310 |
Download
| Adhesion to Backing | 2N/10 mm |
| Adhesion to Steel | 2.2N/10 mm |
| Breaking Strength | 2N/10 mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Elongation at break | 600 % |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Insulating (Yes/No) | No |
| Intermittent Operating Temperature | +130°C |
| Operating Temperature | -40 °C to +90 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Shelf Life | 5 years |
| Specifications |
|
| Suitable for high voltage (Yes/No) | Yes |
| Tensile Strength | 2.0MPa |
| UV-Stabilised | Yes |
| Volume Resistance | 870 Ω cm |
| Water Absorption | 0.02% |
| Country of Origin | ES |
| Customs Number | 39201089 |
| GTIN-13 / EAN | 4031026405766 |
| Packaging 1 - Height (m) | 0.019m |
| Packaging 1 - Length (m) | 0.085m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00014m³ |
| Packaging 1 - Weight (kg) | 0.098kg |
| Packaging 1 - Width (m) | 0.085m |
| Packaging 3 - Height (m) | 0.105m |
| Packaging 3 - Length (m) | 0.39m |
| Packaging 3 - Qty | 100 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0152m³ |
| Packaging 3 - Weight (kg) | 10.3kg |
| Packaging 3 - Width (m) | 0.37m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 4200 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Weight (kg) | 453.6kg |
| Packaging 4 - Width (m) | 0.8m |
| Storage Temperature | +23 °C |
| Storage conditions | 65% relative humidity. |
