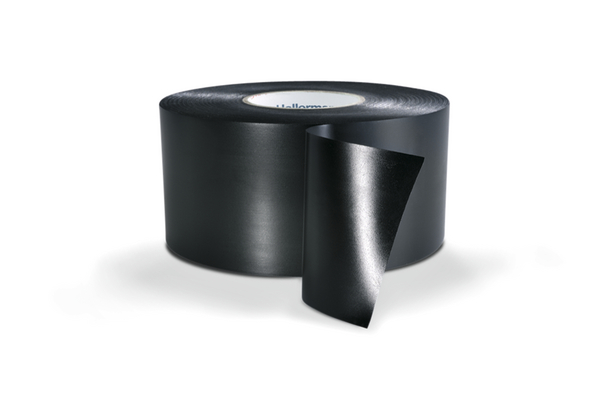

PVC Electrical Insulation Tape 0.25 thick / 25mm x 30m black
Art.-No. 710-00800
| HTAPE-WRAP25-25x30-PVC-BK
|
Details
This product is not available anymore.
Alternative product available
- Special adhesive with excellent protection against corrosion
- Complete environmental, mechanical and electrical protection
- Highly resistant to UV, water, oil, most chemicals, bacteria and fungus
- Used for pipes, tubes, and conduits in outside and underground applications
Request your individual offer now
Request quote
More products in this product group:
| Application | This is a PVC tape with a special adhesive. This tape offers an excellent protection against corrosion and gives complete environmental, mechanical and electrical protection for all types of pipe wrapping applications. It is also resistant to UV, bacteria and fungus. HelaTape Wrap can be used for outside and underground applications. |
| Colour | Black (BK) |
| Material | Polyvinylchloride (PVC) |
| PART DESCRIPTION | HTAPE-WRAP25-25x30-PVC-BK |
| Pack Cont. | 1m |
| Package Content packed in | Reel |
| Product Family | HelaTape Wrap 25 |
| Product Group | Vinyl Electrical Tapes – Vinyl Tape for Corrosion Protection |
| Short Description | PVC Electrical Insulation Tape 0.25 thick / 25mm x 30m black |
| Type | HTAPE-WRAP25-25x30 |
Download
| Adhesion to Backing | 2.0N/10 mm |
| Adhesion to Steel | 2.2N/10 mm |
| Breaking Strength | 44N/10 mm |
| Dielectric Strength | 40kV/mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Elongation at break | 200 % |
| Hazardous Goods | No |
| Insulating (Yes/No) | Yes |
| Operating Temperature | -10 °C to +90 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Shelf Life | 5 years |
| Specifications |
|
| Specifications | VDE |
| Suitable for high voltage (Yes/No) | No |
| Tensile Strength | 44N/mm² |
| UV-Stabilised | Yes |
| Country of Origin | ES |
| Customs Number | 39191012 |
| GTIN-13 / EAN | 4031026402345 |
| Packaging 1 - Height (m) | 0.025m |
| Packaging 1 - Length (m) | 0.12m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00036m³ |
| Packaging 1 - Weight (kg) | 0.25kg |
| Packaging 1 - Width (m) | 0.12m |
| Packaging 3 - Height (m) | 0.16m |
| Packaging 3 - Length (m) | 0.42m |
| Packaging 3 - Qty | 48 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0141m³ |
| Packaging 3 - Weight (kg) | 12.5kg |
| Packaging 3 - Width (m) | 0.21m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 2016 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Weight (kg) | 546.0kg |
| Packaging 4 - Width (m) | 0.8m |
| Storage Temperature | +23 °C |
| Storage conditions | 65% relative humidity. |
HTAPE-WRAP25-25x30
710-10800
