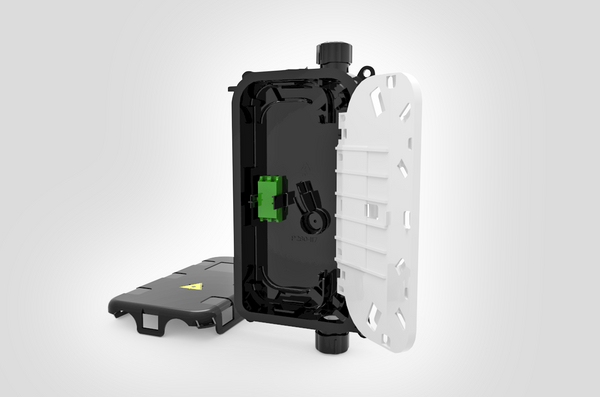

2 Inline Port CCPXT with tray, 1 x LC APC duplex adaptor, 2 x LC APC 900μm pigtails and breather membrane
Art.-No. 857-01960
| CCPXT-M1X1XX1AP0021X/BK
|
Details
- 2 Port Inline Configuration
- Supplied with 1 x LC APC Duplex Adaptor and 2 x LC APC 900μm Pigtails 1m
- Separate splice tray with 3A splice bridge
- Maximum 13 x 3A splices
- Separate inbound/outbound access points
- Rear Entry Port
- Tamperproof lock mount
- IP68/IK08 Rated
Request your individual offer now
Request quote
More products in this product group:
| Application | The CCPXT 2 Port Inline has been designed to be used as an external building entry point. The enclosure can be wall/facade mounted or placed in to a buried chamber (located at the property boundary or just outside the point of access) providing an external building entry point and network test point. |
| Cable ∅ max | 6.0mm |
| Cable ∅ min | 4.0mm |
| Colour | Black (BK) |
| Content |
1 x 2 Port Inline CCPXT Enclosure 1 x Splice Tray with 3A Splice Bridge 1 x LC APC Duplex Adaptor 2 x LC APC 900μm Pigtails 1m 2 x 4.0 - 6.0mm Cable Entry Seals Gortex Breather Membrane |
| Material | Polycarbonate, UV-stabilised (PCUV) |
| PART DESCRIPTION | CCPXT-M1X1XX1AP0021X/BK |
| Package Content packed in | Box |
| Port count | 2 |
| Product Family | Fibre Optic External Enclosure |
| Product Group | CCPXT - Customer Connection Point |
| Short Description | 2 Inline Port CCPXT with tray, 1 x LC APC duplex adaptor, 2 x LC APC 900μm pigtails and breather membrane |
| Splice Capacity | 13 |
| Technical Description | The 2 Port Inline CCPXT is fitted with a splice tray with a 3A splice bridge (maximum 12 x 3A splices) and supplied with 1 x LC APC Duplex Adaptor and 2 x 1m pigtails. Each cable access point is sealed with a cable entry kit to maintain the IP68 rating. A gortex breather membrane is fitted to the lid to prevent condensation forming in the base of the closure due to temperature fluctuations. Internal fibre management features ensure that a 30mm minimum bend radius is maintained within the closure and provides storage capacity for any excess fibre. The base of the CCPXT has wall mounting points in each corner and the lid snaps in to place using lid retaining clips. The closure also has a tamperproof lock mount can be used to provide additional security if required. |
| Type | CCPXT-M1X1XX1AP0021X/BK |
