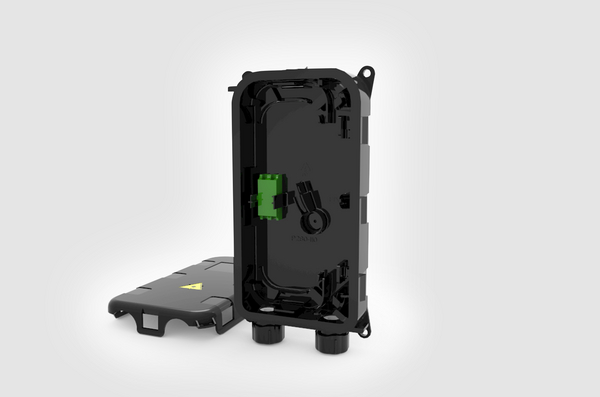

2 Port CCPXL with 1 x LC/APC duplex adaptor, 2 x LC/APC 900μm pigtails and breather membrane
Art.-No. 857-01888
| CCPXX-M11XXX1AP002/BK
|
Details
- 2 Port Configuration
- Supplied with 1 x LC APC Duplex Adaptor and 1 x LC APC 900μm Pigtail 1m
- Separate inbound/outbound access points
- Breathable embrane
- Rear Entry Port
- Tamperproof lock mount
- IP68/IK08 Rated
Request your individual offer now
Request quote
More products in this product group:
| Application | The CCPXL has been designed to be used as an external building entry point. The enclosure can be wall/facade mounted or placed in to a buried chamber (located at the property boundary or just outside the point of access) providing an external building entry point and network test point. |
| Cable ∅ max | 6.0mm |
| Cable ∅ min | 4.0mm |
| Colour | Black (BK) |
| Content |
1 x CCPXL Enclosure 1 x LC/APC Duplex Adaptor 2 x LC/APC 900μm Pigtails 1m 2 x 4.0 - 6.0mm Cable Entry Seals Gortex Breather Membrane |
| Material | Polycarbonate, UV-stabilised (PCUV) |
| PART DESCRIPTION | CCPXX-M11XXX1AP002/BK |
| Package Content packed in | Box |
| Port count | 2 |
| Product Family | Fibre Optic External Enclosure |
| Product Group | CCPXL - Customer Connection Point |
| Short Description | 2 Port CCPXL with 1 x LC/APC duplex adaptor, 2 x LC/APC 900μm pigtails and breather membrane |
| Splice Capacity | 0 |
| Technical Description | The 2 Port CCPXL is supplied with 1 x LC APC Duplex Adaptor and 2 x 1m pigtails. Each cable access point is sealed with a cable entry kit to manage cables from 4.0mm to 6mm and to maintain the IP68 rating. A gortex breather membrane is fitted to the lid to prevent condensation forming in the base of the closure due to temperature fluctuations. Internal fibre management features ensure that a 30mm minimum bend radius is maintained within the closure and provides storage capacity for any excess fibre. The base of the CCPXL has wall mounting points in each corner and the lid snaps in to place using lid retaining clips. The closure also has a tamperproof lock mount can be used provides additional security if required. |
| Type | CCPXX-M11XXX1AP002/BK |
