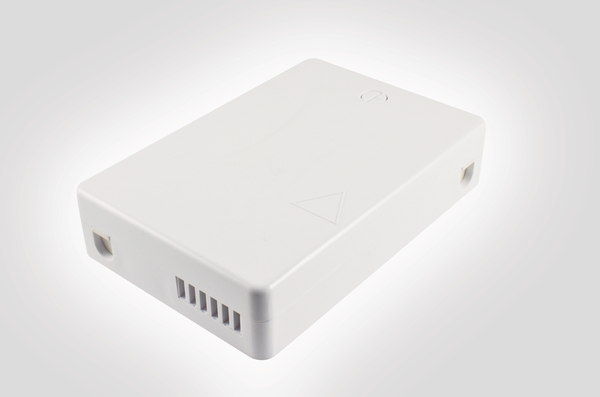

FDES - Fibre Distribution Enclosure - Splice
Art.-No. 857-01076
| FDES-XXXWH
|
Details
- Upto 18, 45mm 3A splices on dedicated splice tray
- 6 cable entry ports
- Separate exit for drop cables

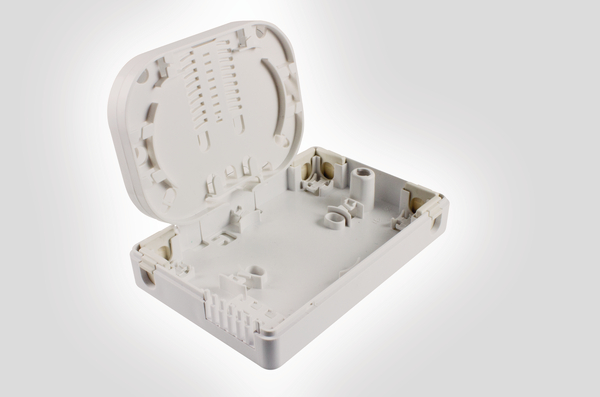

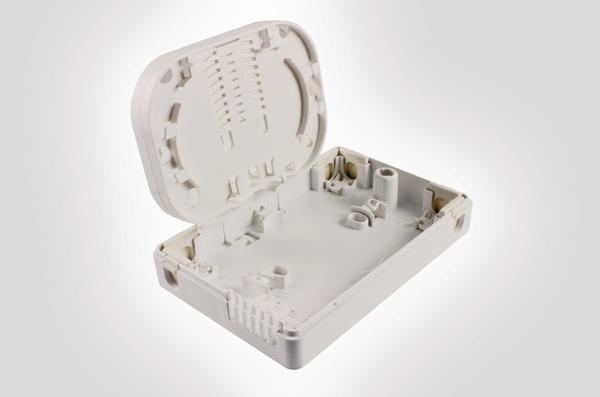

- Hinged fibre storage management tray
- Positive fibre management to ensure 30mm minimum bend radii throughout
- Splitter management area
Request your individual offer now
Request quote
More products in this product group:
| Colour | White (WH) |
| Content |
Fibre Distribution Enclosure Wall Mounting Kit |
| PART DESCRIPTION | FDES-XXXWH |
| Product Family | Fibre Optic Internal Enclosure |
| Product Group | FDES - Fibre Distribution Enclosure - Splice |

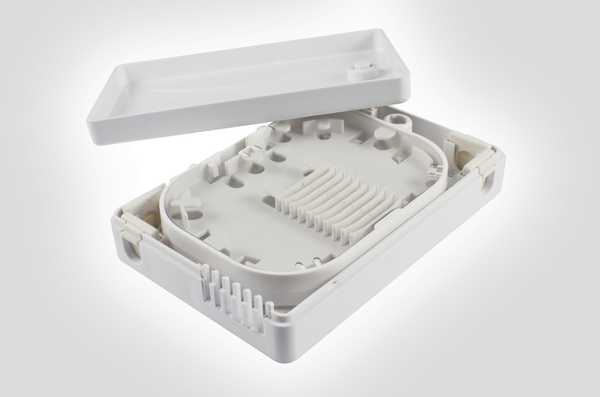

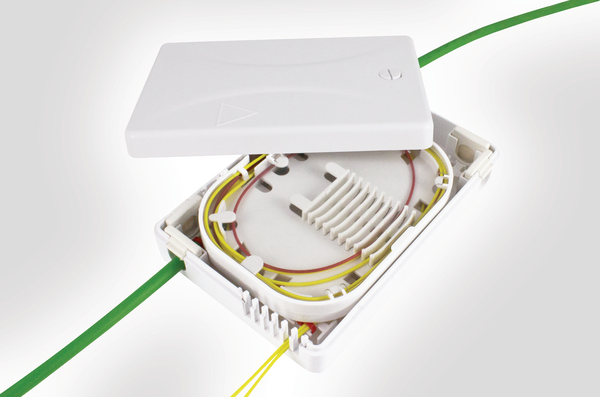

| Technical Description | The Internal Fibre Distribution enclosure has been designed to be used as a Floor Distributor (FD) or Building Entry Point (BEP) in order ro break out, splice and connect fibre optic cables at the point of entry into a building or to distribute individual fibre circuits on a specific floor or zone within a building or office. The two layer closure is manufactured from white ABS and has 6 cable entry points positioned around the closure base to allow for vertical and horizontal mounting positions thereby enabling the management of mid-span/in-line and cable (butt) end configurations. The base also provides fibre storage capacity. The hinged splice tray can support up to 18 3A splices (double stacked) and can accommodate passive optical splitters. The enclosure cover is entirely removable to give clear access to the fibre storage, connector and splice areas and is secured with a twist lock. |
| Type | FDES-XXXWH |
