LC Fibre Panels
Art.-No. 855-00222
| FBPDBKL-LCSMDX-24VF1
|
Details
- Sliding Panels for easy access when terminating
- On board Fibre Optic Management (FOM)
- Multiple cable entry options and securing points
- Available in Quad (96 fibre) and Duplex (48 fibre)
- Also available in multimode
- Supplied with Rack Snap mounting fixings
Request your individual offer now
Request quote
More products in this product group:
| Colour | Black (BK) |
| Connector Type | LC Duplex |

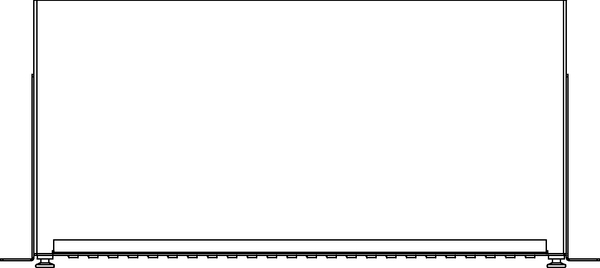

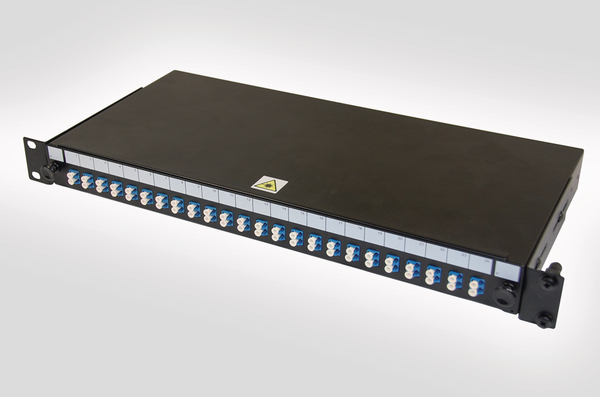

| Description | The LC Single Mode Fibre Panel is a 1U 19” sliding drawer panel with 24 vertical slots which accept either LC Quad or LC Duplex Adaptors. The panel is supplied pre-loaded with the LC adaptors and any unused slots are fitted with blanks and each fibre port is individually numbered for easy identification. |
| Local order number | FBPDBKL-LCSMDX-24VF1 |
| PART DESCRIPTION | FBPDBKL-LCSMDX-24VF1 |
| Performance Category | Single Mode |
| Port count | 48 |
| Product Family | 1U 48 Fibre Single Mode Panel |
| Product Group | LC Fibre Panels |

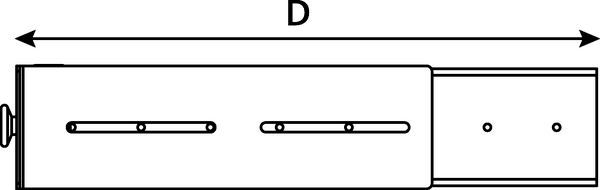

| Technical Description | The LC Single Mode Fibre Panel presents up to a maximum of 96 LC fibres (using LC Quad Adaptors) in 1U of space. The 1U sliding drawer can be locked into position using two simple to operate catches. When fully extended the drawer is designed to lower to 45° giving access to the panel. The drawer can also be locked to a lower maximum of 10°, providing the perfect working platform during installation and maintenance, by sliding the drawer sideways. The rear drawer offers a number of cable options including 4 x 10mm and 2 x 20mm gland holes and has an open section in the centre for specialist cables. In addition the base of the tray has cable securing points and cable management holes for securing Fibre Optic Management (FOM). Adjustable mounting ears allow the panel to be positioned within the rack or frame. |
| Type | FBPDBKL-LCSMDX-24VF1 |
Download
FBPDBKL-SCSMDX-24VF1
855-00219
