31/12/2024

Cable tie mount for hole (round), Wmax=9.3mm, ∅5.9 - 6.4 mm, natural, 100pcs.
Art.-No. 152-11309 | TY5K3-PA66HS-NA |  Details

Cable tie mount for round holes with special designed two wedge footpart for high pull out forces.

    • Quick installation
    • Two-piece wedge
    • Easy insertion
    • Firmly fixes wide variety of cable ties
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download Datasheet
    Application The TY Fixings are ideal for use where a high pull out force is required (eg. in the aircraft industry). The two piece 'wedge' ensures that once installed the mounts will not come away from the panel. Particularly designed for areas with restricted access.
    Colour Natural (NA)
    Fixation Method Rivet Mount
    Local order number TY5K3.HN3P
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION TY5K3-PA66HS-NA
    Pack Cont. 100pcs.
    Package Content packed in pcs.
    Product Family TY5-Series
    Product Group Rivet mount
    Short Description Rivet Mount 18x22 mm, heat stabilised, natural
    Type TY5K3

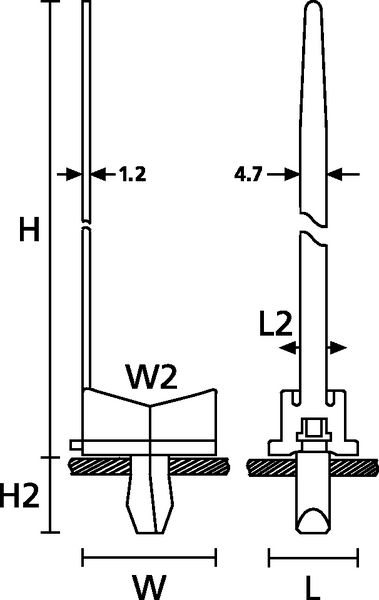

    Height (H) 10.0mm
    Height (H2) 12.5mm
    Length (L) 18.0mm
    Length (L2) 14.0mm
    Strap Width max. (G) 9.3mm
    Weight/Unit 0.00244kg
    Width (W) 22.0mm
    Width (W2) 17.0mm
    for Hole ∅ (FH) 5.9 - 6.4 mm
    for Panel Thickness min - max 2 - 8 mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Nato number 5340-12-325-6140
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026123240
    Packaging 1 - Height (m) 0.025m
    Packaging 1 - Length (m) 0.29m
    Packaging 1 - Qty 100
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.0016m³
    Packaging 1 - Weight (kg) 0.256kg
    Packaging 1 - Width (m) 0.22m
    Packaging 3 - Height (m) 0.171m
    Packaging 3 - Length (m) 0.56m
    Packaging 3 - Qty 1000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0172m³
    Packaging 3 - Weight (kg) 3.45478kg
    Packaging 3 - Width (m) 0.18m
    Packaging 4 - Height (m) 1.171m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 48000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.124m³
    Packaging 4 - Weight (kg) 186.6kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
