FRBU 11 port B length closure with 6 x Hellapon medium side hinged trays
Art.-No. 857-00626
| FRBTB-BXXEC6X
|
Details
- Maximum 72 fibre splice capacity
- 10 round ports and 1 oval port
- 6 x Hellapon Medium Side Hinged Trays
- Maximum 12 splices per tray
- Splitter accommodation
- Cablelok compatible for all port sizes
- Quick release cover
- Optional flash test valve and/or grounding feed-through
Request your individual offer now
Request quote
More products in this product group:
| Colour | Black (BK) |
| Content |
FRBU 11 Port Base B-Length Cover (Dome) Quick Release Clamp Sealing ’O’ Ring Tray Support Frame Anchor Fixing Kit (2) 6 x Hellapon Medium Side Hinged Trays Tray Tool Transportation Tubing Hook and Loop Management Ties Cable Ties Isopropyl Alcohol Wipes Desiccant Installation Guide Marker Kit Red Marker 1 - 12 Green Marker 1 – 12 |
| Cover Type | B |
| Material | Polypropylene (PP) |
| Method of Sealing | Cablelok, Heatshrink |
| PART DESCRIPTION | FRBTB-BXXEC6X |
| Pack Cont. | 1Set |
| Package Content packed in | kit |
| Port | LM, B, R |
| Port count | 1, 2, 8 |
| Product Family | B Length |
| Product Group | FRBU 11 Port Closure |
| Qty Trays | 6 |
| Short Description | FRBU 11 port B length closure with 6 x Hellapon medium side hinged trays |
| Splice Capacity | 72 |

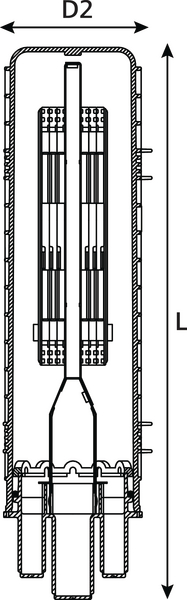

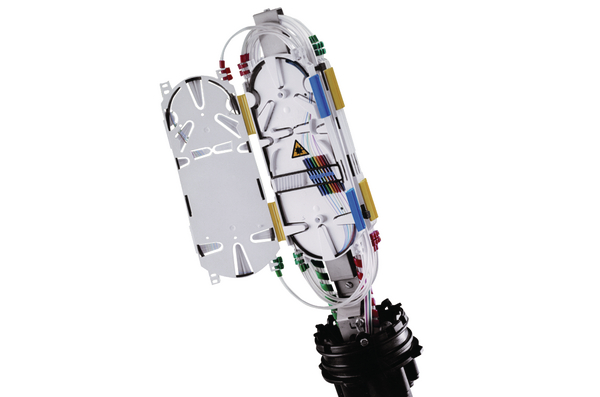

| Technical Description | The FRBU 11 Port B Length closure is supplied with a Polypropylene base. The base configuration of 10 round ports and 1 oval port covers a cable diameter range of 1.7 – 16.5mm when using Cablelok mechanical seals and 6.0 – 22.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and is supplied with 6 x Hellapon Medium Side Hinged Trays giving a maximum of 72 fibre splices. The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays. |
| Type | FRBTB-BXXEC6X |
| Type of Tray | Hellapon Medium Side Hinged |
| Variant | Outdoor Enclosure |
