Cable grommet, black, 200pcs.
Art.-No. 634-02210 | H221-PVC-FR-BK |  Details

Bend and strain protection on casings.

    • Provides excellent strain relieve
    • Flexible and easy to apply
    • High resistance to chemicals and environmental influences
    Add to watchlist

    Request your individual offer now

     Request quote
    Application Strain protection grommets are used as protection for cables and wires from pulling. They are also used for bend protection in casing apertures. They are especially useful in electrical equipment, for instance in electrical drills.
    The use of Hellerine is recommended when working with grommets.
    Cable ⌀ max 12.0mm
    Cable ⌀ min 10.0mm
    Colour Black (BK)
    Material Polyvinylchloride, flame retardant (PVC-FR)
    PART DESCRIPTION H221-PVC-FR-BK
    Pack Cont. 200pcs.
    Package Content packed in pcs.
    Product Family H221
    Product Group Strain Protection Grommets
    Short Description Strain protection grommets black
    Type H221
    Variant Open

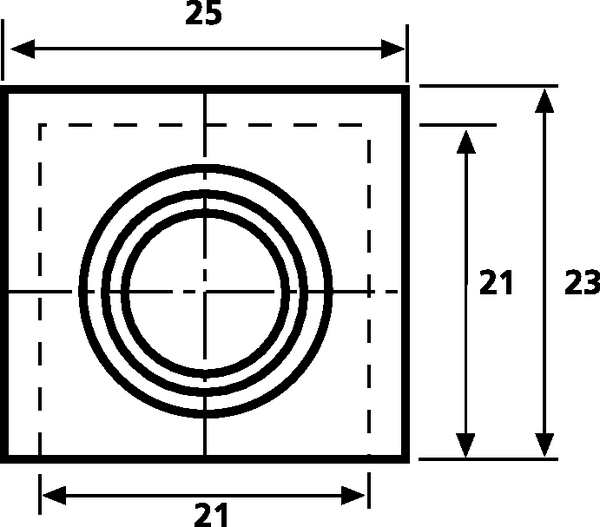

    ⌀ (D2) 10.5mm
    Diameter (D) 12.0mm
    Outside ⌀ (OD) 15.0mm
    Outside ⌀ (OD2) 13.0mm
    Shore Hardness A 55±5
    Weight/Unit 0.0125kg
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 V0
    Hazardous Goods No
    Operating Temperature -30 °C to +60 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026186733
    Packaging 1 - Height (m) 0.09m
    Packaging 1 - Length (m) 0.34m
    Packaging 1 - Qty 200
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.0104m³
    Packaging 1 - Weight (kg) 2.500001kg
    Packaging 1 - Width (m) 0.34m
    ETIM 7.0 Key EC000879
    ETIM 8.0 Key EC000879
    ETIM 9.0 Key EC000879
