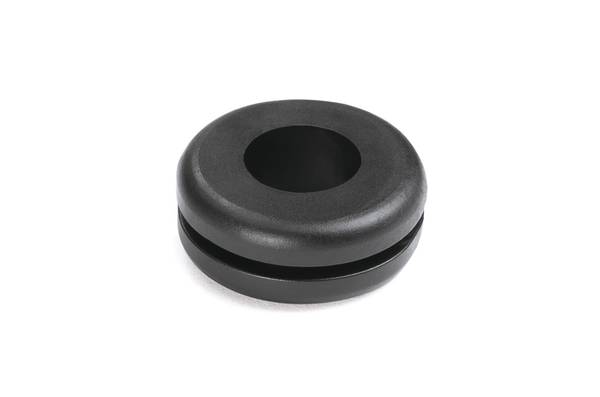

Cable grommet, ∅19.0 mm, black, 500pcs.
Art.-No. 633-01010 | HV1101-PVC-FR-BK |  Details

Edge Protection Grommet - HV1101.

    • Protects cables from sharp edges
    • Provides additional strain relief
    • Flexible and easy to apply
    • High resistance to chemicals and environmental influences
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download Datasheet
    Application Edge protection grommets are used wherever cable and wires are routed through outlets and apertures. HellermannTyton grommets offer excellent mechanical protection.
    Cable ∅ max 12.0mm
    Cable ∅ min 11.0mm
    Colour Black (BK)
    Material Polyvinylchloride, flame retardant (PVC-FR)
    PART DESCRIPTION HV1101-PVC-FR-BK
    Pack Cont. 500pcs.
    Package Content packed in pcs.
    Product Family HV1101
    Product Group Edge Protection Grommets
    Short Description Edge protection grommets black, outside diameter: 25.5mm, inside diameter: 12.0mm, height: 10.0mm
    Type HV1101
    Variant Round

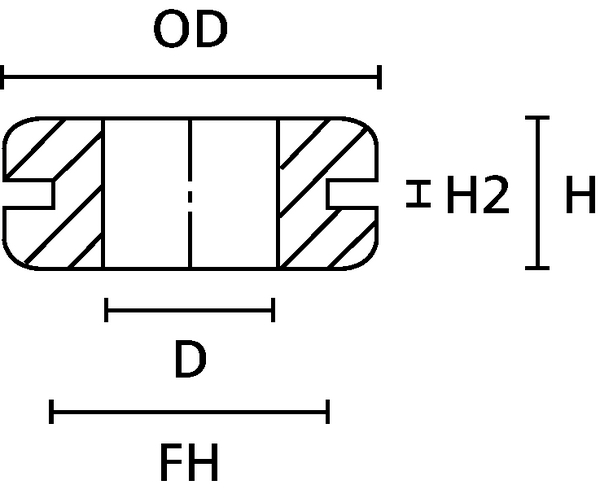

    Bundle Diameter max (metric) 25.5mm
    Bundle ∅ 25.5mm
    Diameter (D) 12.0mm
    Height (H) 10.0mm
    Height (H2) 1.6mm
    Outside Ø (OD) 25.5mm
    Shore Hardness A 55±5
    Weight/Unit 0.004033kg
    for Hole ∅ (FH) 19.0 mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 V0
    Hazardous Goods No
    Nato number 5325-12-152-2447
    Operating Temperature -30 °C to +60 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026186221
    Packaging 1 - Height (m) 0.09m
    Packaging 1 - Length (m) 0.43m
    Packaging 1 - Qty 500
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.01471m³
    Packaging 1 - Weight (kg) 2.0445kg
    Packaging 1 - Width (m) 0.38m
    ETIM 7.0 Key EC000879
    ETIM 8.0 Key EC000879
    ETIM 9.0 Key EC000879
    UNSPSC Key 39131603
