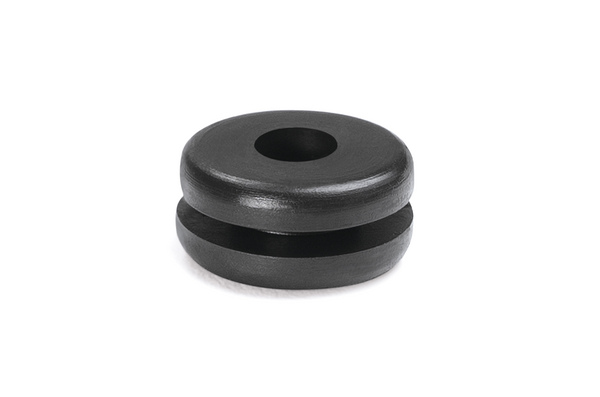

Cable grommet, ∅8.0 mm, black, 2000pcs.
Art.-No. 633-02160 | HV1216-PVC-FR-BK |  Details

Edge Protection Grommet - HV1216.

    • Protects cables from sharp edges
    • Provides additional strain relief
    • Flexible and easy to apply
    • High resistance to chemicals and environmental influences
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download Datasheet
    Application Edge protection grommets are used wherever cable and wires are routed through outlets and apertures. HellermannTyton grommets offer excellent mechanical protection.
    Cable ∅ max 6.0mm
    Cable ∅ min 5.0mm
    Colour Black (BK)
    Material Polyvinylchloride, flame retardant (PVC-FR)
    PART DESCRIPTION HV1216-PVC-FR-BK
    Pack Cont. 2000pcs.
    Package Content packed in pcs.
    Product Family HV1216
    Product Group Edge Protection Grommets
    Short Description Edge protection grommets black, outside diameter: 14.5mm, inside diameter: 5.0mm, height: 6.5mm
    Type HV1216
    Variant Round
    Diameter (D) 5.0mm
    Height (H) 6.5mm
    Height (H2) 1.5mm
    Outside Ø (OD) 14.5mm
    Shore Hardness A 55±5
    Weight/Unit 0.000845kg
    for Hole ∅ (FH) 8.0 mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 V0
    Hazardous Goods No
    Nato number 5325-12-159-8317
    Operating Temperature -30 °C to +60 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026186399
    Packaging 1 - Height (m) 0.07m
    Packaging 1 - Length (m) 0.41m
    Packaging 1 - Qty 2000
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.01091m³
    Packaging 1 - Weight (kg) 1.69kg
    Packaging 1 - Width (m) 0.38m
    ETIM 7.0 Key EC000879
    ETIM 8.0 Key EC000879
    ETIM 9.0 Key EC000879
    UNSPSC Key 39131603
    Cable grommets Cable grommets

    Cable grommets

    Wether snap in cable grommets, grommet strips, assortment boxes, grommets for strain relief or bend protection: Find now the right cable grommets for your application.
