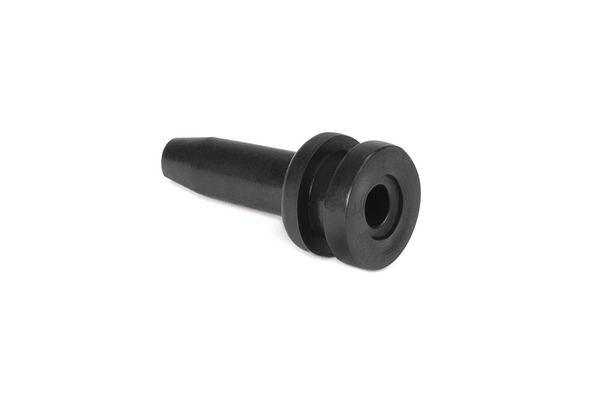

Cable grommet, ∅9.5 mm, black, 1000pcs.
Art.-No. 632-01040 | HV2104-PVC-FR-BK |  Details

Bend Protection Grommet - HV2104.

    • Routes cables free of kinks and breakage
    • Provides strain relief
    • Flexible and easy to apply
    • High resistance to chemicals und environmental influences
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application Bend protection grommets are typically used for protection of cables at apertures in casings.
    Cable ∅ max 4.5mm
    Cable ∅ min 3.0mm
    Colour Black (BK)
    Material Polyvinylchloride, flame retardant (PVC-FR)
    PART DESCRIPTION HV2104-PVC-FR-BK
    Pack Cont. 1000pcs.
    Package Content packed in pcs.
    Product Family HV2104
    Product Group Bend Protection Grommets
    Short Description Bend protection grommets black, outside diameter: 13.0mm, inside diameter: 4.5mm
    Type HV2104
    Variant Open

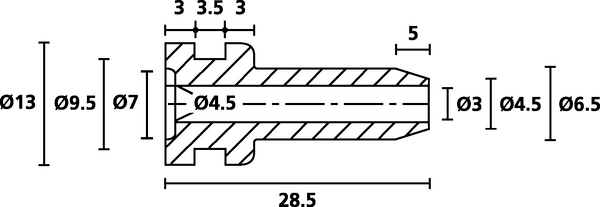

    Diameter (D) 4.5mm
    Length (L) 28.5mm
    Outside Ø (OD) 13.0mm
    Outside ∅ (OD2) 6.5mm
    Shore Hardness A 55±5
    Weight/Unit 0.001568kg
    for Hole ∅ (FH) 9.5 mm
    ∅ (D2) 3.0mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 V0
    Hazardous Goods No
    Operating Temperature -30 °C to +60 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026186054
    Packaging 1 - Height (m) 0.08m
    Packaging 1 - Length (m) 0.43m
    Packaging 1 - Qty 1000
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.01307m³
    Packaging 1 - Weight (kg) 1.596kg
    Packaging 1 - Width (m) 0.38m
    ETIM 7.0 Key EC000879
    ETIM 8.0 Key EC000879
    ETIM 9.0 Key EC000879
