19/11/2024

Cable grommet, ∅8.0 mm, black, 500pcs.
Art.-No. 632-02060 | HV2206-PVC-FR-BK |  Details

Protection of cables and routing free of kinks and breakage.

    • Routes cables free of kinks and breakage
    • Provides strain relief
    • Flexible and easy to apply
    • High resistance to chemicals und environmental influences
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application Bend protection grommets are typically used for protection of cables at apertures in casings.
    Cable ∅ max 5.6mm
    Cable ∅ min 5.5mm
    Colour Black (BK)
    Material Polyvinylchloride, flame retardant (PVC-FR)
    PART DESCRIPTION HV2206-PVC-FR-BK
    Pack Cont. 500pcs.
    Package Content packed in pcs.
    Product Family HV2206
    Product Group Bend Protection Grommets

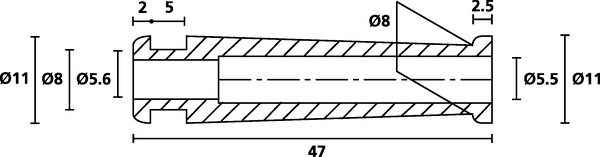

    Short Description Bend protection grommets black, outside diameter: 11.0mm, inside diameter: 5.5mm
    Type HV2206
    Variant Open
    Diameter (D) 5.5mm
    Length (L) 47.0mm
    Outside Ø (OD) 11.0mm
    Shore Hardness A 55±5
    Weight/Unit 0.0028kg
    for Hole ∅ (FH) 8.0 mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 V0
    Hazardous Goods No
    Nato number 5975-12-173-9133
    Operating Temperature -30 °C to +60 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026186092
    Packaging 1 - Height (m) 0.06m
    Packaging 1 - Length (m) 0.35m
    Packaging 1 - Qty 500
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.0084m³
    Packaging 1 - Weight (kg) 1.400001kg
    Packaging 1 - Width (m) 0.4m
    ETIM 7.0 Key EC000879
    ETIM 8.0 Key EC000879
    ETIM 9.0 Key EC000879
