Identification plates for marking cable bundles
Art.-No. 151-00913 | HFTP48-PEEK-WH |  Details

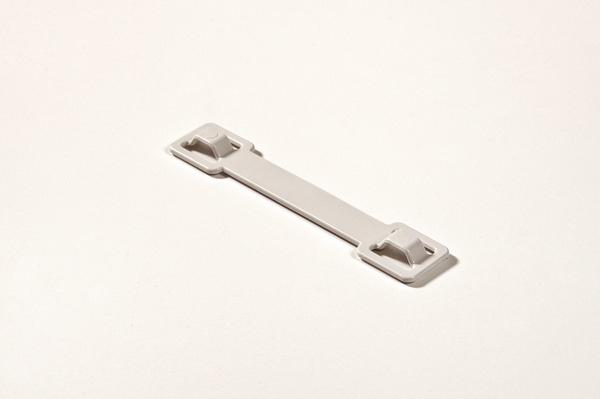

HFTP48-PEEK-Tiptag

    • HFTP is an aerospace standard Tiptag
    • Laser beam printable
    • Available in beige
    • Fixed with PEEK cable ties
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads

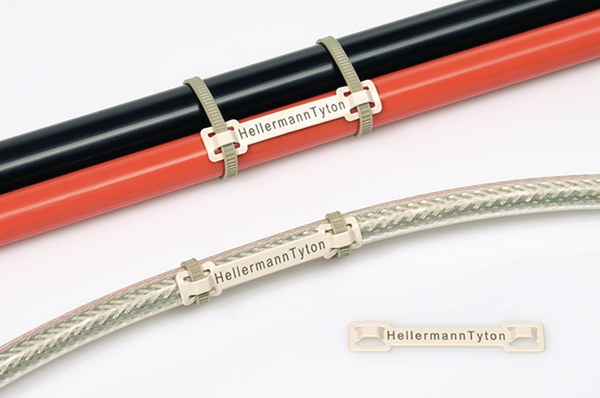

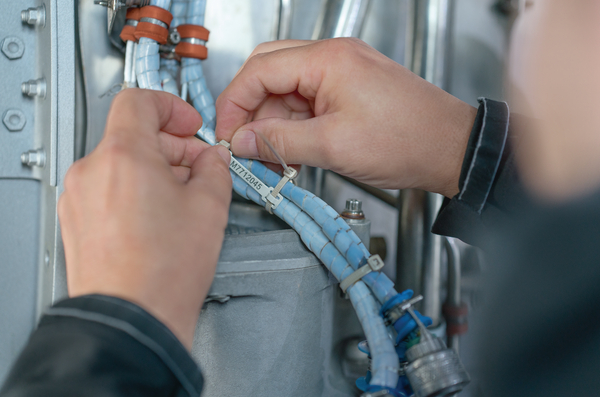

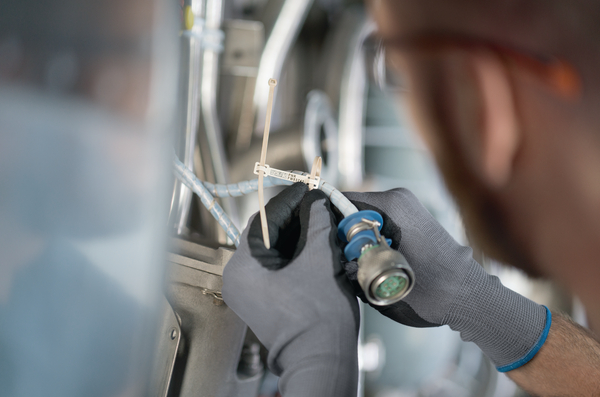

    Application PEEK tags have been specifically designed for use in high temperature environments. The HFTP tags are applied to cables and harness assemblies with cable ties, and are also suitable for retrofit purposes. The material has been conditioned for printing with a laser beam and gives both excellent print definition and print durability.
    Colour White (WH)
    Fixation Method Others
    Local order number HFTP48-M
    Material Polyetheretherketone (PEEK)
    PART DESCRIPTION HFTP48-PEEK-WH
    Pack Cont. 10pcs.
    Package Content packed in Bag
    Product Family HFTP PEEK for high temperature applications
    Product Group Identification plates for marking cable bundles
    Type HFTP48
    Variant Other
    With label space Yes

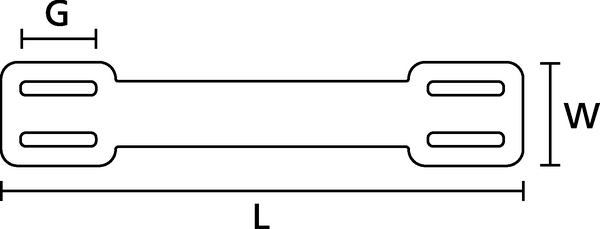

    Length (L) 48mm
    Print Method manual marking
    Width (W) 9.5mm
    Operating Temperature -55 °C to +240 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660676369
    ETIM 7.0 Key EC001530
    ETIM 8.0 Key EC001530
    ETIM 9.0 Key EC001530
