Stainless steel cable marker Hellermark, embossing "6", 6x10mm, 200pcs.
Art.-No. 540-01660 | SSM-SS316-ML |  Details

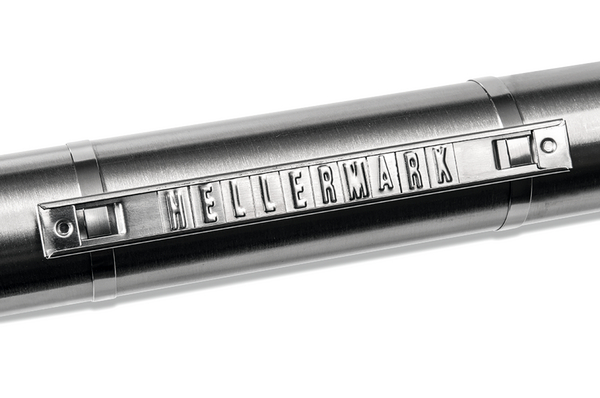

Hellermark SSC and SSM.

    • Stainless steel pre-embossed marker tiles
    • Use in harsh and hazardous conditions
    • Made of grade SS316 stainless steel for ideal use in aggressive environments
    • Insert marker tiles (SSM) into fitting carrier (SSC) and close ends with pliers
    • Fasten carriers using stainless steel cable ties with max. strap width of 8mm
    • Carrier can be riveted or screw-fixed using two 3mm holes at each end
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application Hellermark is used in the rail, marine, offshore, petrochemical, food and construction industries, for the identification of cables, pipes and other equipment in harsh environments.
    Colour Metal (ML)
    Fixation Method Others
    Local order number MSSM 6
    Marking Text 6
    Material Stainless Steel (SS316)
    PART DESCRIPTION SSM-SS316-ML
    Pack Cont. 200pcs.
    Package Content packed in Pack
    Product Family Hellermark SSM
    Product Group Stainless steel pre-embossed marking system, manual
    Short Description Stainless Steel Marker 10-6 mm Pre-embossed with 6
    Type SSM
    Variant Other
    With label space No

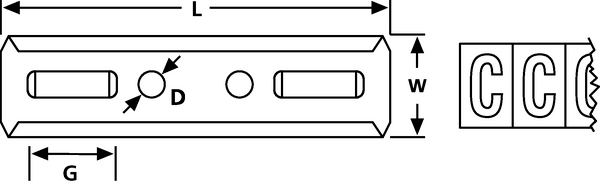

    Length (L) 10mm
    Print Method embossing
    Strap Width max. (G) 8.0mm
    Weight/Unit 0.0001kg
    Width (W) 6mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    Operating Temperature -80 °C to +538 °C
    Pre-Printed Yes
    ROHS compliant Yes
    Specifications
    Country of Origin SE
    Customs Number 83100000
    GTIN-13 / EAN 5022660047350
    Packaging 1 - Height (m) 0.005m
    Packaging 1 - Length (m) 0.07m
    Packaging 1 - Qty 200
    Packaging 1 - Type Pack
    Packaging 1 - Volume (m³) 0.00006m³
    Packaging 1 - Weight (kg) 0.02kg
    Packaging 1 - Width (m) 0.17m
    ETIM 7.0 Key EC001530
    ETIM 8.0 Key EC001530
    ETIM 9.0 Key EC001530
