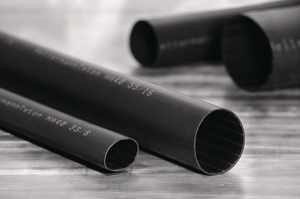

Heat Shrinkable Tubing 4:1 Thick Wall Adhesive Lined length 1m 40/12 black GL-certificated
Art.-No. 321-00104
| HA40-40/12-PO-X-BK
|
Details
- Thick wall adhesive lined shrink tubing for low voltage power cables
- Designed for shipbuilding, Germanische Lloyd approved
- Flame retardant
- UV and weather resistant
- Excellent mechanical performance
Request your individual offer now
Request quote
More products in this product group:
| Application | Designed for low voltage cable joints and terminations in shipbuilding. Insulates and protects against moisture. |
| Behaviour At Low Temperature | not cracking |
| Behaviour at Heat Shock | not cracking |
| Behaviour at low Temperature test method | ASTM D2671 |
| Colour | Black (BK) |
| Elongation At Heat Aging | 300% |
| Heat Aging Test | 168h/150°C |
| Heat Aging test method | ASTM D2671 |
| Heat Shock Test | 4h/225°C |
| Material | Polyolefin, cross-linked (PO-X) |
| Minimum Tensile Strength At Heat Aging | 12MPa |
| PART DESCRIPTION | HA40-40/12-PO-X-BK |
| Pack Cont. | 2m |
| Package Content packed in | pcs. |
| Printable | No |
| Product Family | HA40 - thick wall adhesive lined |
| Product Group | Heat shrinkable tubing 4:1 - Flame retardant |
| Short Description | Heat Shrinkable Tubing 4:1 Thick Wall Adhesive Lined length 1m 40/12 black GL-certificated |
| Shrink Ratio | up to 4:1 |
| Type | HA40-40/12 |
| Variant | Thick-Wall |
| With inner glue (Yes/No) | Yes |
Download
| Adhesive | Hot melt adhesive |
| Dielectric Strength | 15kV/mm |
| Dielectric Strength test method | IEC 60243-1 |
| ELV compliant Dir. Art. 4 (2) | YES |
| Elongation at break | 300 |
| Elongation at break test method | ASTM D2671 |
| Halogen-free | No |
| Hazardous Goods | No |
| Limited Fire Hazard | No |
| Minimum Shrink Temperature | +120 °C |
| Operating Temperature | -55 °C to +110 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Softening Point Adhesive | +85 °C |
| Specifications | DIN EN ISO 8580, DNV |
| Specifications |
|
| Tensile Strength | 12MPa |
| Test Method Tensile Strength | ASTM D2671 |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| Volume Resistance | 10¹⁴ Ω cm |
| Volume Resistance test method | IEC 93 |
|
|
|
| Country of Origin | CN |
| Customs Number | 39173200 |
| GTIN-13 / EAN | 4031026461274 |
| Packaging 1 - Height (m) | 0.045m |
| Packaging 1 - Length (m) | 1.0m |
| Packaging 1 - Qty | 2 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00428m³ |
| Packaging 1 - Weight (kg) | 0.556801kg |
| Packaging 1 - Width (m) | 0.095m |
| Packaging 3 - Height (m) | 0.244m |
| Packaging 3 - Length (m) | 1.081m |
| Packaging 3 - Qty | 20 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0628m³ |
| Packaging 3 - Weight (kg) | 6.32801kg |
| Packaging 3 - Width (m) | 0.238m |
| Packaging 4 - Height (m) | 1.112m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 240 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.068m³ |
| Packaging 4 - Weight (kg) | 96.936kg |
| Packaging 4 - Width (m) | 0.8m |
