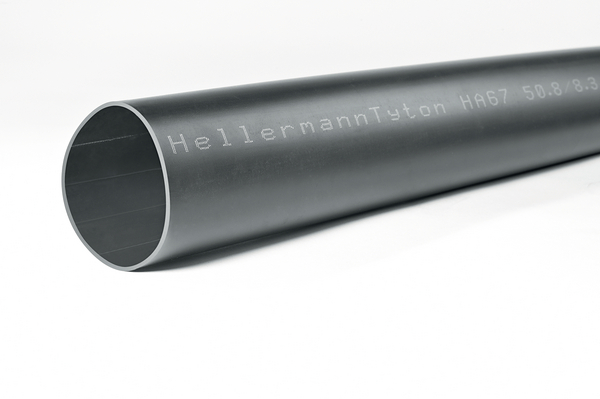

Heat Shrinkable Tubing 6:1 Thick Wall Adhesive Lined length 1.22m 50.8/8.3 black
Art.-No. 321-30300
| HA67-50.8/8.3-PO-X-BK
|
Details
- High shrink ratio, heavy-duty heat shrinkable tubing
- Thermoplastic adhesive-lined tubing
- Conforms well to highly variable substrate dimensions
- Simplifies cable repair
- Passes over large connectors and shrinks onto much smaller cable jackets
- Environmental sealing and excellent insulation
- Resistant to impact and abrasion
Request your individual offer now
Request quote
More products in this product group:
| Application | Insulates, seals and protects large size differences between connectors and cables. |
| Colour | Black (BK) |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | HA67-50.8/8.3-PO-X-BK |
| Pack Cont. | 2pcs. |
| Package Content packed in | pcs. |
| Printable | No |
| Product Family | HA67 |
| Product Group | Heat Shrinkable Tubing 6:1, adhesive lined in 1.2 m cuts |
| Short Description | Heat Shrinkable Tubing 6:1 Thick Wall Adhesive Lined length 1.22m 50.8/8.3 black |
| Shrink Ratio | 6:1 |
| Type | HA67-50.8/8.3 |
| Variant | Thick-Wall |
| Voltage range | Low Voltage , up to 1,000 Volt |
| With inner glue (Yes/No) | Yes |
Download
| Adhesive | Hot melt adhesive |
| Copper corrosion | non-corrosive |
| Dielectric Strength | 20kV/mm |
| Dielectric Strength test method | IEC 243 |
| ELV compliant Dir. Art. 4 (2) | YES |
| Elongation at break | ≥400% |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Minimum Shrink Temperature | +120 °C |
| Operating Temperature | -55 °C to +110 °C |
| ROHS compliant | Yes |
| Softening Point Adhesive | +85 °C |
| Specifications |
|
| Tensile Strength | 14MPa |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| Volume Resistance | 10¹⁴ Ω cm |
|
|
|
| Country of Origin | CN |
| Customs Number | 39173200 |
| GTIN-13 / EAN | 4031026322919 |
| Packaging 1 - Height (m) | 0.05m |
| Packaging 1 - Length (m) | 1.22m |
| Packaging 1 - Qty | 2 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00702m³ |
| Packaging 1 - Weight (kg) | 0.600001kg |
| Packaging 1 - Width (m) | 0.115m |
| Packaging 4 - Height (m) | 0.964m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 60 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.925m³ |
| Packaging 4 - Weight (kg) | 70.88kg |
| Packaging 4 - Width (m) | 0.8m |
