Heat Shrinkable Tubing 2:1 on a Reel 1,6/0,8 red
Art.-No. 300-30162
| HIS-PACK-1.6/0.8-PO-X-RD
|
Details
- Cross-linked Polyolefin, thin-wall and flexible

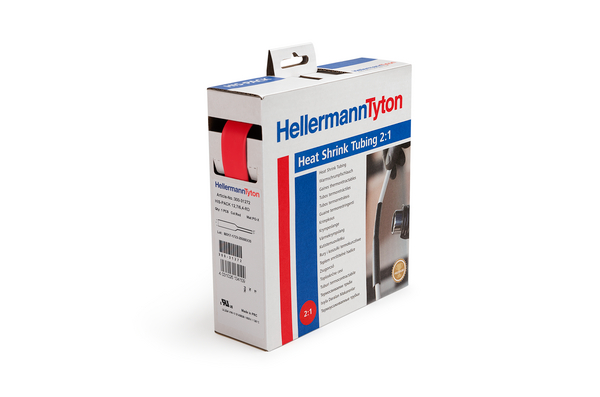

- Handy dispenser box including table showing application size range
- Available in black, red, blue, transparent and yellow/green
- 10 sizes from 1.2 mm to 25.4 mm
- Transparent color is halogen free
Request your individual offer now
Request quote
More products in this product group:
| Application | HIS-PACK is used in general purpose of electrical insulation with a high level of protection against corrosion and mechanical abrasion. |
| Behaviour at Heat Shock | not dripping |
| Colour | Red (RD) |
| Heat Aging Test | 168h/175°C |
| Heat Shock Test | 4h/250°C |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | HIS-PACK-1.6/0.8-PO-X-RD |
| Pack Cont. | 10m |
| Package Content packed in | Box |
| Printable | No |
| Product Family | HIS-PACK |
| Product Group | Heat Shrinkable Tubing 2:1 on a Reel |
| Short Description | Heat Shrinkable Tubing 2:1 on a Reel 1,6/0,8 red |
| Shrink Ratio | 2:1 |
| Size (imperial) | 1/16" |
| Type | HIS-PACK-1.6/0.8 |
| Variant | Thin-Wall |
| With inner glue (Yes/No) | No |
Download
| Dielectric Strength | 20kV/mm |
| Dielectric Strength test method | IEC 243 |
| ELV compliant Dir. Art. 4 (2) | YES |
| Elongation at break | 800% (IEC 684 P2) |
| Flammability | UL 224 VW-1 |
| Halogen-free | No |
| Hazardous Goods | No |
| Insulation Class | E (VDE 0530) |
| Minimum Shrink Temperature | +100 °C |
| Operating Temperature | -55 °C to +125 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Specifications | ANSI/UL 224, csa-C22.1, csa-C22.2 No.198.1 |
| Specifications |
|
| Tensile Strength | 17MPa |
| UL OCD link | Link Link |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E143529 |
| Volume Resistance | 10¹⁴ Ω cm |
| Water Absorption | 0.15% |
|
|
|
| Country of Origin | CN |
| Customs Number | 39173200 |
| GTIN-13 / EAN | 4031026133423 |
| Packaging 1 - Height (m) | 0.18m |
| Packaging 1 - Length (m) | 0.165m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | Carton |
| Packaging 1 - Volume (m³) | 0.00163m³ |
| Packaging 1 - Weight (kg) | 0.217kg |
| Packaging 1 - Width (m) | 0.055m |
| Packaging 3 - Height (m) | 0.4m |
| Packaging 3 - Length (m) | 0.56m |
| Packaging 3 - Qty | 40 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.084m³ |
| Packaging 3 - Weight (kg) | 9.18kg |
| Packaging 3 - Width (m) | 0.375m |
| Packaging 4 - Height (m) | 0.95m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 320 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.912m³ |
| Packaging 4 - Weight (kg) | 94.44kg |
| Packaging 4 - Width (m) | 0.8m |
| Reel Length | 10.0m |
| Reel Length (imperial) | 32.8ft |
