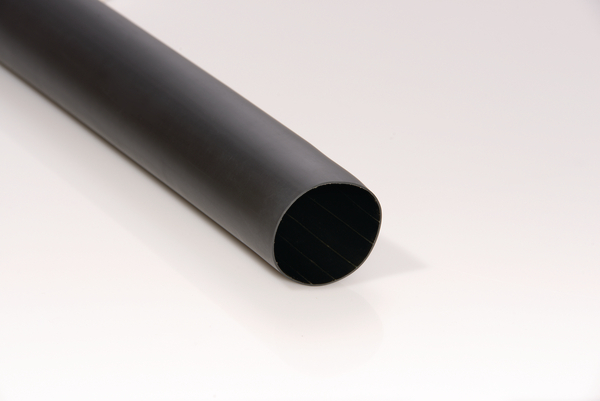

Heat Shrinkable Tubing 4:1 Medium Wall Adhesive Lined length 1m 22/6 black GL-Specification
Art.-No. 323-00104
| MA40-22/6-PO-X-BK
|
Details
- Medium wall adhesive lined shrink tubing for low voltage power cables
- Designed for shipbuilding, Germanische Lloyd approved
- Flame retardant
- UV and weather resistant
- Excellent mechanical performance
Request your individual offer now
Request quote
More products in this product group:
| Application | Designed for low voltage cable joints and terminations in shipbuilding. Insulates and protects against moisture. |
| Colour | Black (BK) |
| Elongation At Heat Aging | 300% |
| Heat Aging Test | 168h/150°C |
| Heat Aging test method | ASTM D2671 |
| Material | Polyolefin, cross-linked (PO-X) |
| Minimum Tensile Strength At Heat Aging | 12MPa |
| PART DESCRIPTION | MA40-22/6-PO-X-BK |
| Pack Cont. | 5pcs. |
| Package Content packed in | Lengths |
| Printable | No |
| Product Family | MA40 - medium wall adhesive lined |
| Product Group | Heat shrinkable tubing 4:1 - Flame retardant |
| Short Description | Heat Shrinkable Tubing 4:1 Medium Wall Adhesive Lined length 1m 22/6 black GL-Specification |
| Shrink Ratio | up to 4:1 |
| Type | MA40-22/6 |
| Variant | Medium-Wall |
| With inner glue (Yes/No) | Yes |
Download
| Adhesive | Hot melt adhesive |
| Dielectric Strength | 15kV/mm |
| Dielectric Strength test method | IEC 60243-1 |
| ELV compliant Dir. Art. 4 (2) | YES |
| Elongation at break | 350 |
| Elongation at break test method | ASTM D2671 |
| Halogen-free | No |
| Hazardous Goods | No |
| Limited Fire Hazard | No |
| Minimum Shrink Temperature | +120 °C |
| Operating Temperature | -55 °C to +110 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Softening Point Adhesive | +85 °C |
| Specifications | DIN EN ISO 8580, DNV |
| Specifications |
|
| Tensile Strength | 12MPa |
| Test Method Tensile Strength | ASTM D2671 |
| UL Recognized (US and Canada) | No |
| Volume Resistance | 10¹² Ω cm |
| Volume Resistance test method | ASTM D2671 |
| Water Absorption | 0.2% |
|
|
|
| Country of Origin | CN |
| Customs Number | 39173200 |
| GTIN-13 / EAN | 4031026461199 |
| Packaging 1 - Height (m) | 0.055m |
| Packaging 1 - Length (m) | 1.2m |
| Packaging 1 - Qty | 5 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00726m³ |
| Packaging 1 - Weight (kg) | 0.600001kg |
| Packaging 1 - Width (m) | 0.11m |
| Packaging 3 - Height (m) | 0.39m |
| Packaging 3 - Length (m) | 1.035m |
| Packaging 3 - Qty | 160 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.1574m³ |
| Packaging 3 - Weight (kg) | 19.7kg |
| Packaging 3 - Width (m) | 0.39m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 640 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Weight (kg) | 99.8kg |
| Packaging 4 - Width (m) | 0.8m |
