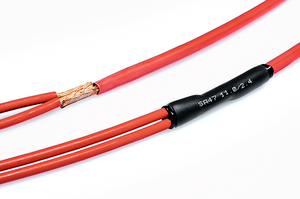

Heat shrinkable tubing 4:1 (11/2,4 mm), adhesive lined, oil resistance, transparent, 1,2 m
Art.-No. 301-10002
| SA47 11.0/2.4-PO-X-BK/CL
|
Details
- Flexible, standard wall polyolefin heat shrink tubing
- Excellent tensile strength and strain relief
- Provides excellent moisture protection
- Tubing is clear and hot melt adhesive black
- Provides an environmental sealing of complex parts
- Halogen free
Request your individual offer now
Request quote
More products in this product group:
| Application | SA47 is a semi-rigid halogen free polyolefin tubing with a thick inner liner of hot melt adhesive. It has excellent tensile strength and strain relief. The adhesive liner provides excellent moisture protection. Ideal for electrical connections and splices in automobiles. Tubing is transparent and hot melt adhesive is black. |
| Behaviour at Heat Shock | not cracking |
| Colour | Transparent (CL), Black (BK) |
| Heat Shock Test | 4h/225°C |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | SA47 11.0/2.4-PO-X-BK/CL |
| Pack Cont. | 1.2m |
| Package Content packed in | pcs. |
| Printable | No |
| Product Family | SA47 - standard wall adhesive lined |
| Product Group | Heat shrinkable tubing 4:1 - 1.2 m lengths |
| Short Description | Heat shrinkable tubing 4:1 (11/2,4 mm), adhesive lined, oil resistance, transparent, 1,2 m |
| Shrink Ratio | 4:1 |
| Type | SA47 11.0/2.4 |
| Variant | Standard-Wall |
| With inner glue (Yes/No) | Yes |
Download
| Adhesive | Hot melt adhesive |
| CAS Number | 119-47-1 |
| Critical Substance | BisphenolC23H32O2, 1-5 % |
| Dielectric Strength | 20kV/mm |
| Dielectric Strength test method | ASTM D149 |
| EC Number | 204-327-1 |
| ELV compliant Dir. Art. 4 (2) | YES |
| Elongation at break | 450% |
| Elongation at break test method | ASTM D2671 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Melting Point | starting from +110 °C |
| Minimum Shrink Temperature | +130 °C |
| Operating Temperature | -40 °C to +125 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Tensile Strength | 14MPa |
| Test Method Tensile Strength | ASTM D2671 |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| Volume Resistance | 10¹³ Ω cm |
| Volume Resistance test method | ASTM D2671 |
| Water Absorption | 0.5% |
| Country of Origin | DE |
| Customs Number | 39173200 |
| GTIN-13 / EAN | 4031026482118 |
| Packaging 1 - Height (m) | 0.02m |
| Packaging 1 - Length (m) | 1.37m |
| Packaging 1 - Qty | 25 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0063m³ |
| Packaging 1 - Weight (kg) | 0.748kg |
| Packaging 1 - Width (m) | 0.23m |
| Packaging 3 - Height (m) | 0.14m |
| Packaging 3 - Length (m) | 1.27m |
| Packaging 3 - Qty | 100 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0453m³ |
| Packaging 3 - Weight (kg) | 3.626kg |
| Packaging 3 - Width (m) | 0.255m |
| Packaging 4 - Height (m) | 0.964m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 1500 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.925m³ |
| Packaging 4 - Weight (kg) | 105.98kg |
| Packaging 4 - Width (m) | 0.8m |
