Heat shrinkable tubing 4:1 (24/6 mm), adhesive lined, transparent / black, 1.2 m
Art.-No. 301-10024
| SA47-LA-24.0/6.0-PO-X-BK/CL
|
Details
- Standard wall polyolefin heat shrink tubing
- Industry leading corrosion protection
- Excellent tensile strength and strain relief
- Provides excellent moisture protection
- Tubing is clear and hot melt adhesive black
- Provides environmental sealing of complex parts
- Halogen free
Request your individual offer now
Request quote
More products in this product group:

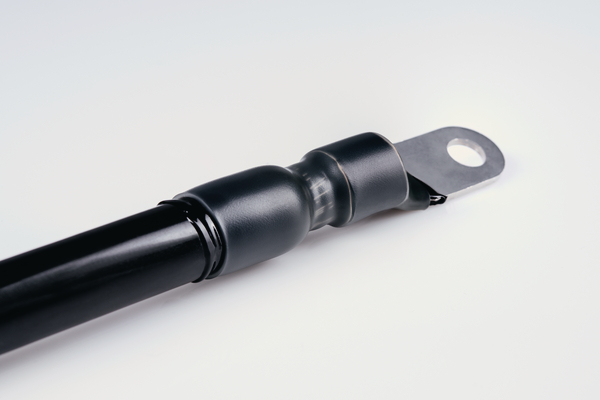

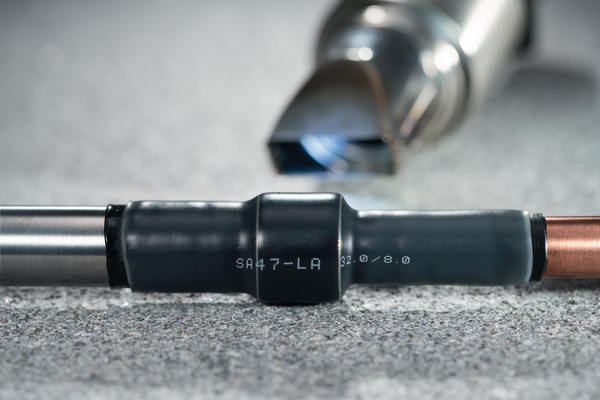

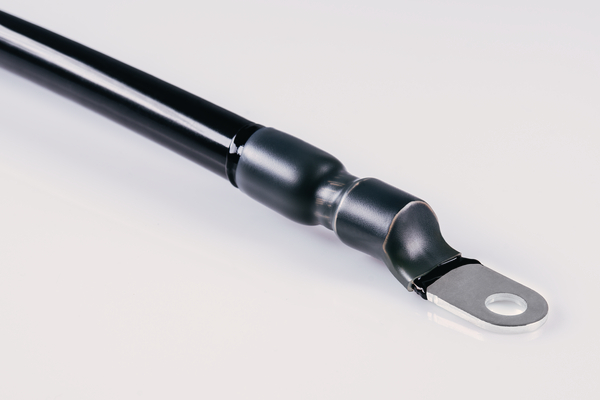

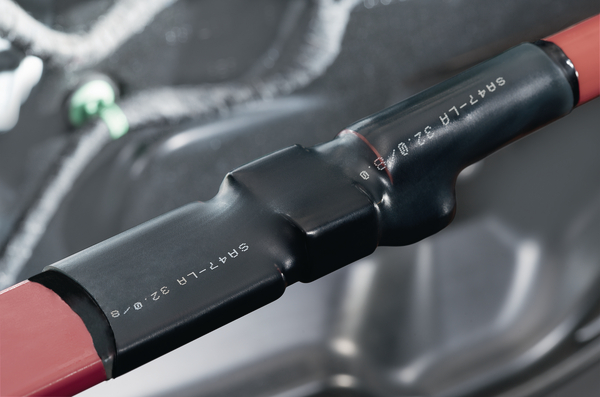

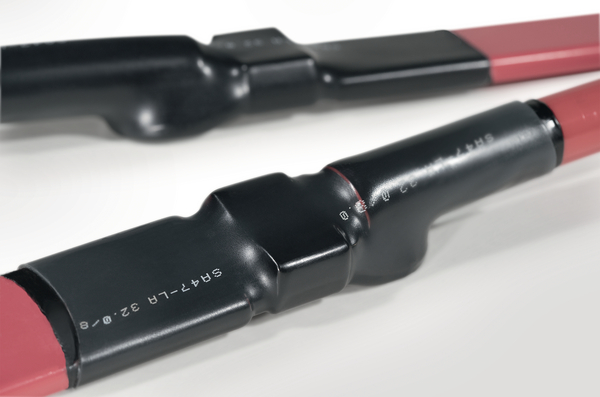

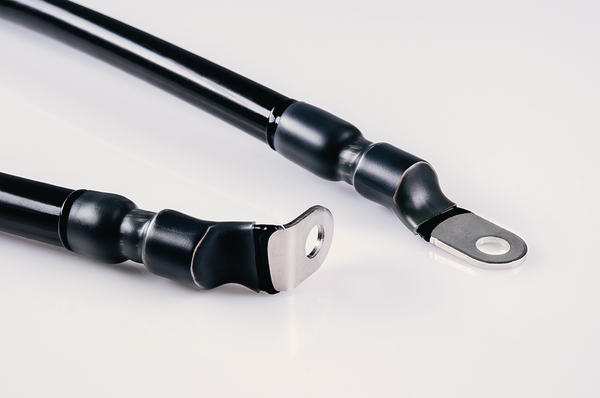

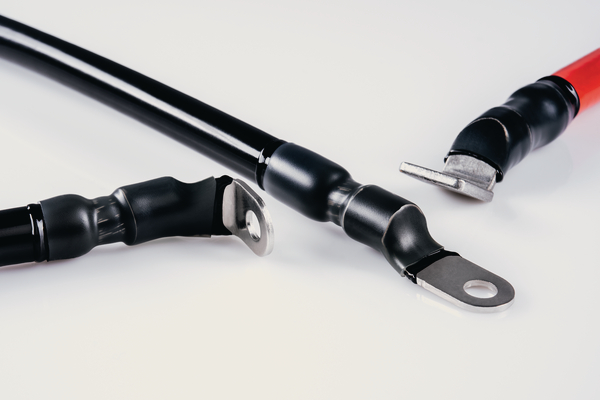

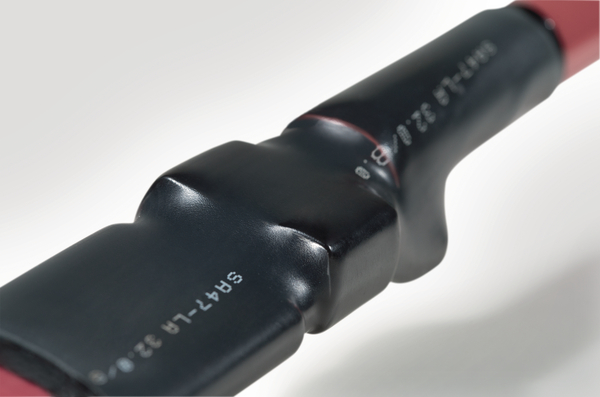

| Application | SA47-LA is a semi-rigid halogen free polyolefin tubing with an inner liner of hot melt adhesive. It has excellent tensile strength and strain relief. The adhesive liner provides superb moisture protection. Ideal for electrical connections and splices in automobiles. Tubing is transparent and hot melt adhesive is black. SA47-LA is specially designed with less adhesive for cable connections. |
| Behaviour at Heat Shock | not cracking |
| Colour | Transparent (CL), Black (BK) |
| Heat Shock Test | 4h/225°C |
| Key product features | bimetallic corrosion protection |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | SA47-LA-24.0/6.0-PO-X-BK/CL |
| Pack Cont. | 1.2m |
| Package Content packed in | pcs. |
| Printable | No |
| Product Family | SA47-LA - standard wall adhesive lined for perfect corrosion protection |
| Product Group | 4:1 Heat shrink tubing - 1.2m lengths |
| Short Description | Heat shrinkable tubing 4:1 (24/6 mm), adhesive lined, transparent / black, 1.2 m |
| Shrink Ratio | 4:1 |
| Type | SA47-LA-24.0/6.0 |
| Variant | Thin-Wall |
| With inner glue (Yes/No) | Yes |
Download
| Adhesive | EVA hot melt adhesive |
| CAS Number | 119-47-1 |
| Critical Substance | BisphenolC23H32O2, 1-5 % |
| Dielectric Strength | 20kV/mm |
| EC Number | 204-327-1 |
| ELV compliant Dir. Art. 4 (2) | YES |
| Elongation at break | 450% |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Melting Point | starting from +110 °C |
| Minimum Shrink Temperature | +130 °C |
| Operating Temperature | -40 °C to +125 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Tensile Strength | 14MPa |
| UL Listed (US and Canada) | No |
| UL Recognized (US) | No |
| Volume Resistance | 10¹³ Ω cm |
| Water Absorption | 0.5% |
| Country of Origin | JP |
| Customs Number | 39173200 |
| GTIN-13 / EAN | 4031026492155 |
| Packaging 1 - Height (m) | 0.05m |
| Packaging 1 - Length (m) | 1.45m |
| Packaging 1 - Qty | 15 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0203m³ |
| Packaging 1 - Weight (kg) | 0.988kg |
| Packaging 1 - Width (m) | 0.28m |
| Packaging 3 - Height (m) | 0.27m |
| Packaging 3 - Length (m) | 1.275m |
| Packaging 3 - Qty | 75 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0854m³ |
| Packaging 3 - Weight (kg) | 6.021kg |
| Packaging 3 - Width (m) | 0.248m |
| Packaging 4 - Height (m) | 1.224m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 900 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.175m³ |
| Packaging 4 - Weight (kg) | 93.252kg |
| Packaging 4 - Width (m) | 0.8m |
