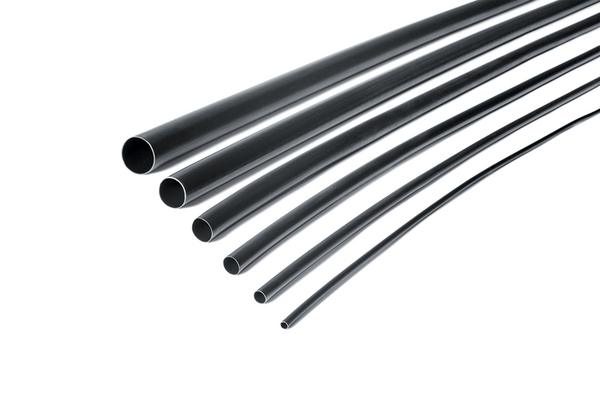

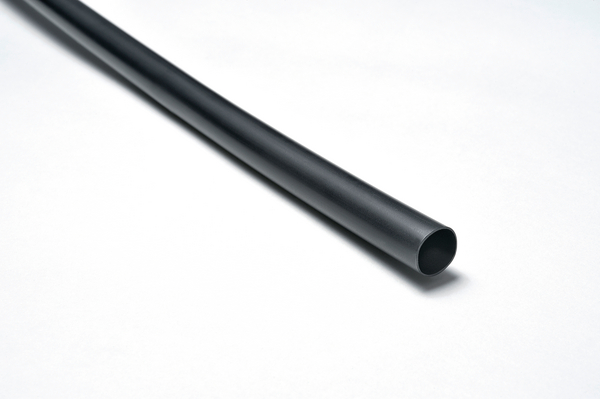

Heat Shrinkable Tubing Thin Wall with Adhesive Liner 3:1 L=1.2m 9/31 black
Art.-No. 315-13003
| TA37 9-3-PO-X-BK
|
Details
- Thin wall adhesive lined heat shrink tubing
- Halogen free
- Flame retardant
- Combination of these three (halogen free, adhesive lined and flame retardant) product properties is unique
- Low smoke generation
- Low generation of toxic gases and corrosive acid
Request your individual offer now
Request quote
More products in this product group:

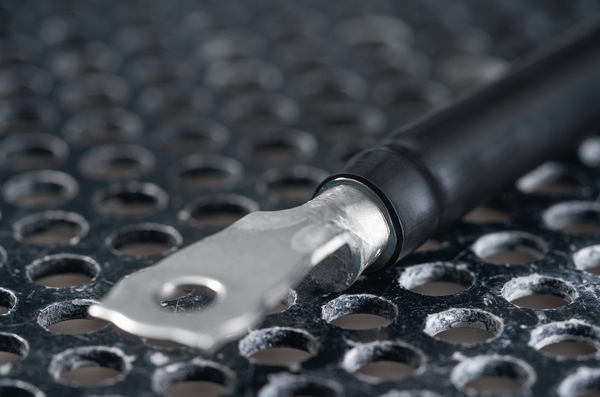

| Application | TA37 shrink tubing has a low smoke index and excellent flame retardant properties to meet strict fire security standards in electrical insulation. |
| Behaviour At Low Temperature | not cracking |
| Behaviour at Heat Shock | not fluid, not dripping, not cracking |
| Behaviour at low Temperature test method | SAE-AS23053 |
| Colour | Black (BK) |
| Heat Aging Test | 168h/138°C |
| Heat Shock Test | 4h/225°C |
| Material | Polyolefin, cross-linked (PO-X) |
| Minimum Tensile Strength At Heat Aging | 7.3MPa |
| PART DESCRIPTION | TA37 9-3-PO-X-BK |
| Pack Cont. | 1.2m |
| Package Content packed in | pcs. |
| Printable | No |
| Product Family | TA37 – thin wall adhesive lined |
| Product Group | Heat shrinkable tubing 3:1 - Flame retardant |
| Short Description | Heat Shrinkable Tubing Thin Wall with Adhesive Liner 3:1 L=1.2m 9/31 black |
| Shrink Ratio | 3:1 |
| Type | TA37 9-3 |
| Variant | Thin-Wall |
| With inner glue (Yes/No) | Yes |
Download
| Adhesive | Hot melt adhesive |
| Dielectric Strength | 19.7kV/mm |
| Dielectric Strength test method | ASTM D876 |
| ELV compliant Dir. Art. 4 (2) | YES |
| Elongation at break | 200% |
| Elongation at break test method | ASTM D638 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Limited Fire Hazard | Yes |
| Minimum Shrink Temperature | +120 °C |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Softening Point Adhesive | +85 °C |
| Specifications | conforms to BS6853, conforms to LUL E1042:A6, DIN EN ISO 4892-2, EN 45545-2, IEC 60068-2-5:2018, Test Sa2 (Solar radiation test) |
| Specifications |
|
| Tensile Strength | 10.4MPa |
| Test Method Tensile Strength | ASTM D638 |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| Volume Resistance | 10¹³ Ω cm |
| Water Absorption | 1.0% |
|
|
|
| Country of Origin | JP |
| Customs Number | 39173200 |
| GTIN-13 / EAN | 4031026444659 |
| Packaging 1 - Height (m) | 0.03m |
| Packaging 1 - Length (m) | 1.36m |
| Packaging 1 - Qty | 25 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00632m³ |
| Packaging 1 - Weight (kg) | 0.565kg |
| Packaging 1 - Width (m) | 0.155m |
| Packaging 3 - Height (m) | 0.14m |
| Packaging 3 - Length (m) | 1.265m |
| Packaging 3 - Qty | 125 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0452m³ |
| Packaging 3 - Weight (kg) | 3.525kg |
| Packaging 3 - Width (m) | 0.255m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Type | pallet |
| Packaging 4 - Width (m) | 0.8m |
