Heat shrinkable tubing 2:1 (25.4/12.7 mm), self extinguishing, blue, 60 m
Art.-No. 300-73106
| TCN20-25.4/12.7-PO-X-BU
|
Details
- Thin wall general purpose polyolefin tubing
- Self extinguishing, UL224 VW-1, CSA
- Fast shrinking
- Low shrink temperature
Request your individual offer now
Request quote
More products in this product group:

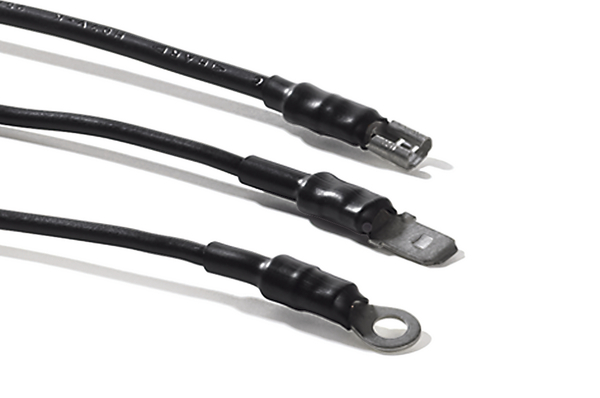

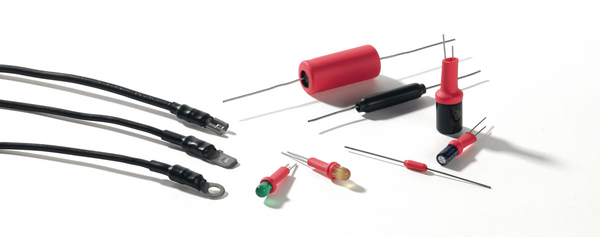

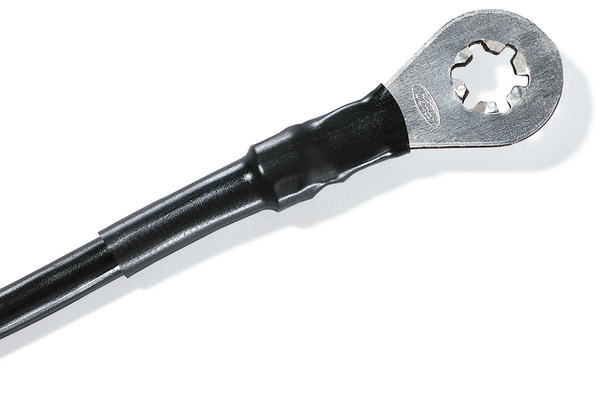

| Application | TCN20 is suitable for a wide range of applications such as electrical insulation, mechanical protection and cable bundling. |
| Colour | Blue (BU) |
| Elongation At Heat Aging | 350% |
| Heat Aging Test | 168h/160°C |
| Material | Polyolefin, cross-linked (PO-X) |
| Minimum Tensile Strength At Heat Aging | 14MPa |
| PART DESCRIPTION | TCN20-25.4/12.7-PO-X-BU |
| Pack Cont. | 60m |
| Package Content packed in | Box |
| Printable | No |
| Product Family | TCN20 - self extinguishing |
| Product Group | Low-Heat Shrinkable Tubing 2:1 |
| Short Description | Heat shrinkable tubing 2:1 (25.4/12.7 mm), self extinguishing, blue, 60 m |
| Shrink Ratio | 2:1 |
| Size (imperial) | 1" |
| Type | TCN20-25.4/12.7 |
| Variant | Thin-Wall |
| With inner glue (Yes/No) | No |
Download
| Dielectric Strength | 20kV/mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Elongation at break | 400% |
| Flammability | UL 224 VW-1 |
| Halogen-free | No |
| Hazardous Goods | No |
| Insulation Class | E (VDE 0530) |
| Minimum Shrink Temperature | +100 °C |
| Operating Temperature | -55 °C to +125 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Specifications | C22.2 no. 198.1-06, DIN 75200 (09/1980), UL 224 125 °C 600V VW-1 |
| Specifications |
|
| Tensile Strength | 14MPa |
| UL OCD link | Link Link |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E143529 |
| Volume Resistance | 10¹⁴ Ω cm |
|
|
|
| Country of Origin | CN |
| Customs Number | 39173200 |
| GTIN-13 / EAN | 4031026283289 |
| Packaging 1 - Height (m) | 0.09m |
| Packaging 1 - Length (m) | 0.36m |
| Packaging 1 - Qty | 60 |
| Packaging 1 - Type | Reel |
| Packaging 1 - Volume (m³) | 0.01166m³ |
| Packaging 1 - Weight (kg) | 3.72kg |
| Packaging 1 - Width (m) | 0.36m |
| Packaging 3 - Height (m) | 0.42m |
| Packaging 3 - Length (m) | 0.4m |
| Packaging 3 - Qty | 240 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0672m³ |
| Packaging 3 - Weight (kg) | 15.38kg |
| Packaging 3 - Width (m) | 0.4m |
| Packaging 4 - Height (m) | 0.984m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 2880 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.945m³ |
| Packaging 4 - Weight (kg) | 205.56kg |
| Packaging 4 - Width (m) | 0.8m |
| Reel Length | 60m |
