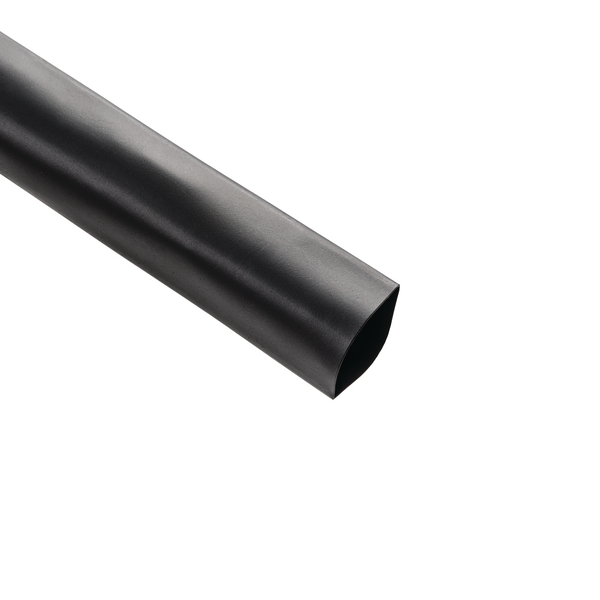

Heat shrinkable tubing 2:1 (9.5/4.8 mm), self extinguishing, black, 100 m
Art.-No. 300-73070
| TCN20-9.5/4.8-PO-X-BK
|
Details
- Thin wall general purpose polyolefin tubing
- Self extinguishing, UL224 VW-1, CSA
- Fast shrinking
- Low shrink temperature
Request your individual offer now
Request quote
More products in this product group:
| Application | TCN20 is suitable for a wide range of applications such as electrical insulation, mechanical protection and cable bundling. |
| Colour | Black (BK) |
| Elongation At Heat Aging | 350% |
| Heat Aging Test | 168h/160°C |
| Material | Polyolefin, cross-linked (PO-X) |
| Minimum Tensile Strength At Heat Aging | 14MPa |
| PART DESCRIPTION | TCN20-9.5/4.8-PO-X-BK |
| Pack Cont. | 100m |
| Package Content packed in | Box |
| Printable | No |
| Product Family | TCN20 - self extinguishing |
| Product Group | Low-Heat Shrinkable Tubing 2:1 |
| Short Description | Heat shrinkable tubing 2:1 (9.5/4.8 mm), self extinguishing, black, 100 m |
| Shrink Ratio | 2:1 |
| Size (imperial) | 3/8" |
| Type | TCN20-9.5/4.8 |
| Variant | Thin-Wall |
| With inner glue (Yes/No) | No |
Download
| CSA Certified | No |
| Dielectric Strength | 20kV/mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Elongation at break | 400% |
| Flammability | UL 224 VW-1 |
| Halogen-free | No |
| Hazardous Goods | No |
| Insulation Class | E (VDE 0530) |
| Minimum Shrink Temperature | +100 °C |
| Operating Temperature | -55 °C to +125 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Specifications | ANSI/UL 224, CSA, DIN 75200 (09/1980) |
| Specifications |
|
| Tensile Strength | 14MPa |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL OCD link | Link Link |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E143529 |
| Volume Resistance | 10¹⁴ Ω cm |
|
|
|
| Country of Origin | CN |
| Customs Number | 39173200 |
| GTIN-13 / EAN | 4031026282770 |
| Packaging 1 - Height (m) | 0.13m |
| Packaging 1 - Length (m) | 0.44m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Reel |
| Packaging 1 - Volume (m³) | 0.02517m³ |
| Packaging 1 - Weight (kg) | 1.95kg |
| Packaging 1 - Width (m) | 0.44m |
| Packaging 3 - Height (m) | 0.43m |
| Packaging 3 - Length (m) | 0.465m |
| Packaging 3 - Qty | 300 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.093m³ |
| Packaging 3 - Weight (kg) | 6.95kg |
| Packaging 3 - Width (m) | 0.465m |
| Packaging 4 - Height (m) | 1.005m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 1200 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.965m³ |
| Packaging 4 - Weight (kg) | 48.8kg |
| Packaging 4 - Width (m) | 0.8m |
| Reel Length | 100m |
| Reel Length (imperial) | 328.0ft |
