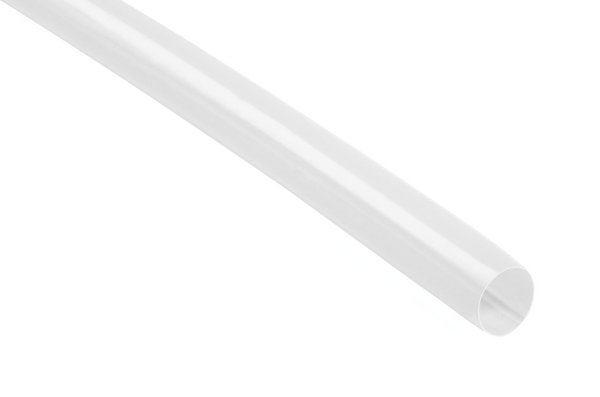

Heat Shrinkable Tubing 4:1 PTFE transparent in a length of 31.75/8.82
Art.-No. 339-03189
| TFE4-1 1/4-PTFE-CL
|
Details
- PTFE heat shrink tubing
- Very high temperature resistance
- Extra thin wall translucent tubing
- High abrasion resistance and good resistance against aggressive chemicals
- Available in either 2:1 (TFE2) or 4:1 (TFE4) shrink ratios
Request your individual offer now
Request quote
More products in this product group:
| Application | TFE is ideal for high temperature applications, where resistance to aggressive fluids is required or a very thin walled tubing is needed, for example in pH-measuring instruments. TFE tubing is also used to reduce movement due to friction, covering cylinders for example. |
| Colour | Transparent (CL) |
| Local order number | TFE4-1+1/4 |
| Material | Polytetrafluoroethylene (PTFE) |
| PART DESCRIPTION | TFE4-1 1/4-PTFE-CL |
| Pack Cont. | 25pcs. |
| Package Content packed in | pcs. |
| Printable | No |
| Product Family | TFE4 4:1 |
| Product Group | Heat Shrinkable Tubing - PTFE |
| Short Description | Heat Shrinkable Tubing 4:1 PTFE transparent in a length of 31.75/8.82 |
| Shrink Ratio | 4:1 |
| Size (imperial) | 1-1/4" |
| Type | TFE4-1 1/4 |
| Variant | Thin-Wall |
| With inner glue (Yes/No) | No |
Download
| Dielectric Strength | 40kV/mm |
| Dielectric Strength test method | DIN 53481 |
| ELV compliant Dir. Art. 4 (2) | YES |
| Halogen-free | No |
| Hazardous Goods | No |
| Limited Fire Hazard | No |
| Minimum Shrink Temperature | +330 °C |
| Operating Temperature | -65 °C to +260 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Tensile Strength | 39MPa |
| Volume Resistance | 10¹⁸ Ω cm |
| Volume Resistance test method | DIN IEC 93 / DIN IEC 167 |
| Country of Origin | DE |
| Customs Number | 39173200 |
| GTIN-13 / EAN | 4031026149738 |
| Packaging 1 - Height (m) | 0.11m |
| Packaging 1 - Length (m) | 1.3m |
| Packaging 1 - Qty | 25 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.04076m³ |
| Packaging 1 - Weight (kg) | 0.734kg |
| Packaging 1 - Width (m) | 0.285m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Type | pallet |
| Packaging 4 - Width (m) | 0.8m |
