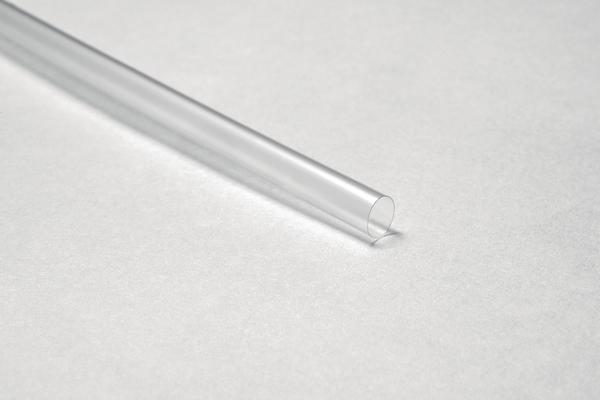

Heat shrinkable tubing 2:1 (9.5/4.8 mm), PVDF, transparent, 60 m reel
Art.-No. 311-90959
| TK29-9.5/4.8-PVDF-CL
|
Details
- Transparent, semi-flexible heat shrinkable tubing
- Very thin walled and tough
- Self extinguishing
- For higher temperature applications
- Very good mechanical strength and chemical resistance
- Meets lots of industrial standards
- Supplied on reel
Request your individual offer now
Request quote
More products in this product group:
| Application | Typical applications of this translucent tubing are where high-temperature performance is required. Also very suitable for applications that ask for visual inspection of covered components, or if low friction surface is needed. TK29 is also used as oil stop for energy cables. This thin walled, translucent heat shrink tubing is often used for chemical applications. |
| Behaviour At Low Temperature | not cracking |
| Behaviour at Heat Shock | not cracking, not dripping, not fluid |
| Behaviour at low Temperature test method | SAE-AS23053 |
| Colour | Transparent (CL) |
| Elongation At Heat Aging | 200% |
| Heat Aging Test | 168h/250°C |
| Heat Aging test method | ASTM D638 |
| Heat Shock Test | 4h/275°C |
| Material | Polyvinylidene Fluoride (PVDF) |
| PART DESCRIPTION | TK29-9.5/4.8-PVDF-CL |
| Pack Cont. | 60m |
| Package Content packed in | Reel |
| Product Family | TK29 |
| Product Group | Heat Shrinkable Tubing 2:1 - PVDF |
| Short Description | Heat shrinkable tubing 2:1 (9.5/4.8 mm), PVDF, transparent, 60 m reel |
| Shrink Ratio | 2:1 |
| Type | TK29-9.5/4.8 |
| Variant | Thin-Wall |
| With inner glue (Yes/No) | No |
Download
| Dielectric Strength | 30kV/mm |
| Dielectric Strength test method | SAE-AS23053 |
| ELV compliant Dir. Art. 4 (2) | YES |
| Elongation at break | ≥350% |
| Elongation at break test method | ASTM D412 |
| Flammability | UL 224 VW-1 |
| Halogen-free | No |
| Hazardous Goods | No |
| Insulation Class | F (VDE 0530) |
| Minimum Shrink Temperature | +150 °C |
| Operating Temperature | -55 °C to +175 °C |
| ROHS compliant | Yes |
| Specifications | UL 224 |
| Specifications |
|
| Tensile Strength | 30MPa |
| Test Method Tensile Strength | ASTM D412 |
| UL OCD link | Link |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E198024 |
| Volume Resistance | 10¹⁵ Ω cm |
| Water Absorption | 0.2% |
|
|
|
| Country of Origin | JP |
| Customs Number | 39173200 |
| GTIN-13 / EAN | 4031026223971 |
| Packaging 1 - Height (m) | 0.242m |
| Packaging 1 - Length (m) | 0.39m |
| Packaging 1 - Qty | 60 |
| Packaging 1 - Type | Reel |
| Packaging 1 - Volume (m³) | 0.03681m³ |
| Packaging 1 - Weight (kg) | 0.51kg |
| Packaging 1 - Width (m) | 0.39m |
| Packaging 3 - Height (m) | 0.26m |
| Packaging 3 - Length (m) | 0.4m |
| Packaging 3 - Qty | 60 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0416m³ |
| Packaging 3 - Weight (kg) | 1.01kg |
| Packaging 3 - Width (m) | 0.4m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 1440 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Weight (kg) | 45.24kg |
| Packaging 4 - Width (m) | 0.8m |
| Reel Length | 60.0m |
