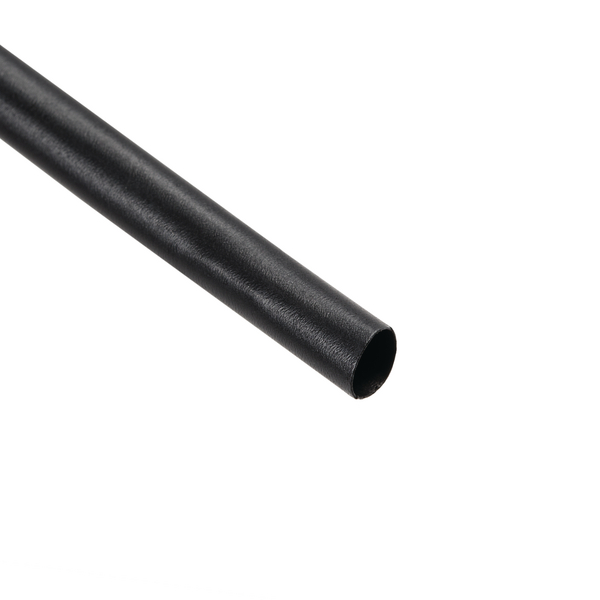

Heat Shrinkable Tubing 4:1 Medium Wall Adhesive Lined length 1m 50/16 black
Art.-No. 323-50500
| TREDUX-MA47-50/16-PO-X-BK
|
Details
- Medium wall heat shrink tubing
- Thermoplastic adhesive liner for protection from moisture and weathering
- 1 m shrink tubing lenghts delivered in handy display carton
- All tubes can be sold in single 1 meter lengths or entire box
Request your individual offer now
Request quote
More products in this product group:
| Application | Suitable for insulation and protection of low voltage cable joints and terminations. |
| Behaviour At Low Temperature | not cracking |
| Behaviour at Heat Shock | not cracking, not fluid, not dripping |
| Behaviour at low Temperature test method | ASTM D2671 |
| Colour | Black (BK) |
| Elongation At Heat Aging | 300% |
| Heat Aging Test | 168h/150°C |
| Heat Aging test method | ASTM D2671 |
| Heat Shock Test | 4h/225°C |
| Material | Polyolefin, cross-linked (PO-X) |
| Minimum Tensile Strength At Heat Aging | 12MPa |
| PART DESCRIPTION | TREDUX-MA47-50/16-PO-X-BK |
| Pack Cont. | 2pcs. |
| Package Content packed in | pcs. |
| Printable | No |
| Product Family | TREDUX MA47 medium wall - with adhesive liner |
| Product Group | Heat Shrinkable Tubing up to 4:1 - 1 m lengths |
| Short Description | Heat Shrinkable Tubing 4:1 Medium Wall Adhesive Lined length 1m 50/16 black |
| Shrink Ratio | up to 4:1 |
| Type | TREDUX-MA47-50/16 |
| Variant | Medium-Wall |
| Voltage range | Low and medium voltage |
| With inner glue (Yes/No) | Yes |
|
|
| Length (L) | 1.0m |
| Longitudinal Change After Shrinkage | -10% max. |
| Nominal ∅ | 50mm |
| Nominal ∅ (imperial) | 2" |
| Recov. ∅ d | 16.0mm |
| Recov. ∅ d max. (imperial) | 0.62" |
| Supplied ∅ D | 50.0mm |
| Supplied ∅ D min. (imperial) | 1.96" |
| Wall (WT) | 2.7mm |
| Wall (WT) (imperial) | .1" |
| Weight/Unit | 0.193kg |
| Wire Size Range (mm²) | 22.8-43.2mm² |
Download
| Adhesive | Hot melt adhesive |
| Dielectric Strength | 15kV/mm |
| Dielectric Strength test method | IEC 60243 |
| ELV compliant Dir. Art. 4 (2) | YES |
| Elongation at break | 350 |
| Elongation at break test method | ASTM D2671 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Insulation Class | A (VDE 0530) |
| Minimum Shrink Temperature | +120 °C |
| Operating Temperature | -55 °C to +110 °C |
| ROHS compliant | Yes |
| Softening Point Adhesive | +85 °C |
| Specifications |
|
| Tensile Strength | 12MPa |
| Test Method Tensile Strength | ASTM D2671 |
| Volume Resistance | 10¹² Ω cm |
| Volume Resistance test method | IEC 93 |
| Water Absorption | 0.2% |
|
|
|
| Country of Origin | CN |
| Customs Number | 39173200 |
| GTIN-13 / EAN | 4031026239798 |
| Packaging 1 - Height (m) | 0.094m |
| Packaging 1 - Length (m) | 1.068m |
| Packaging 1 - Qty | 2 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00944m³ |
| Packaging 1 - Weight (kg) | 1.166001kg |
| Packaging 1 - Width (m) | 0.094m |
| Packaging 3 - Height (m) | 0.132m |
| Packaging 3 - Length (m) | 1.081m |
| Packaging 3 - Qty | 4 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.034m³ |
| Packaging 3 - Weight (kg) | 2.972002kg |
| Packaging 3 - Width (m) | 0.238m |
| Packaging 4 - Height (m) | 1.2m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 96 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.152m³ |
| Packaging 4 - Weight (kg) | 92.328kg |
| Packaging 4 - Width (m) | 0.8m |
