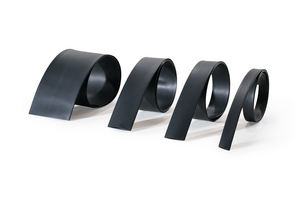

Heat shrinkable tubing 2:1 - self-extinguishing, halogen-free and diesel resistant
Art.-No. 300-06009
| TU28-38.1/19.1-PO-X-BK
|
Details
- Thin-walled, flexible polyolefin heat shrinkable tubing
- Halogen-free
- Self-extinguishing
- Low smoke index
- DIN EN 45545-2 (HL3) approved
- Diesel resistant
Request your individual offer now
Request quote
More products in this product group:
| Application | The thin-walled heat shrinkable tubing TU28 is halogen-free, self-extinguishing, has a low smoke index and therefore is extremely suitable for installation in public transportation applications such as trains, busses, planes, tunnels and elevators. |
| Behaviour at Heat Shock | not fluid, not dripping, not cracking |
| Colour | Black (BK) |
| Heat Shock Test | 4h/225°C |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | TU28-38.1/19.1-PO-X-BK |
| Pack Cont. | 50m |
| Package Content packed in | Reel |
| Product Family | TU28 - thin-walled |
| Product Group | Heat shrinkable tubing 2:1 - self-extinguishing, halogen-free and diesel resistant |
| Shrink Ratio | 2:1 |
| Type | TU28-38.1/19.1 |
| Variant | Thin-Wall |
| With inner glue (Yes/No) | No |
Download
| Dielectric Strength | 19.7kV/mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Elongation at break | 200% |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Minimum Shrink Temperature | +120 °C |
| Operating Temperature | -55 °C to +125 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | DIN EN 50343:2014 Appendix H, EN 45545-2 |
| Tensile Strength | 10.3MPa |
| Volume Resistance | 10¹⁴ Ω cm |
| Country of Origin | CN |
| Customs Number | 39173200 |
| GTIN-13 / EAN | 4031026602028 |
| Packaging 1 - Height (m) | 0.075m |
| Packaging 1 - Length (m) | 0.38m |
| Packaging 1 - Qty | 50 |
| Packaging 1 - Type | Reel |
| Packaging 1 - Volume (m³) | 0.01083m³ |
| Packaging 1 - Weight (kg) | 3.0kg |
| Packaging 1 - Width (m) | 0.38m |
| Packaging 3 - Height (m) | 0.4m |
| Packaging 3 - Length (m) | 0.4m |
| Packaging 3 - Qty | 250 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.064m³ |
| Packaging 3 - Weight (kg) | 15.5kg |
| Packaging 3 - Width (m) | 0.4m |
| Packaging 4 - Height (m) | 0.945m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 3000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.907m³ |
| Packaging 4 - Weight (kg) | 207.0kg |
| Packaging 4 - Width (m) | 0.8m |
