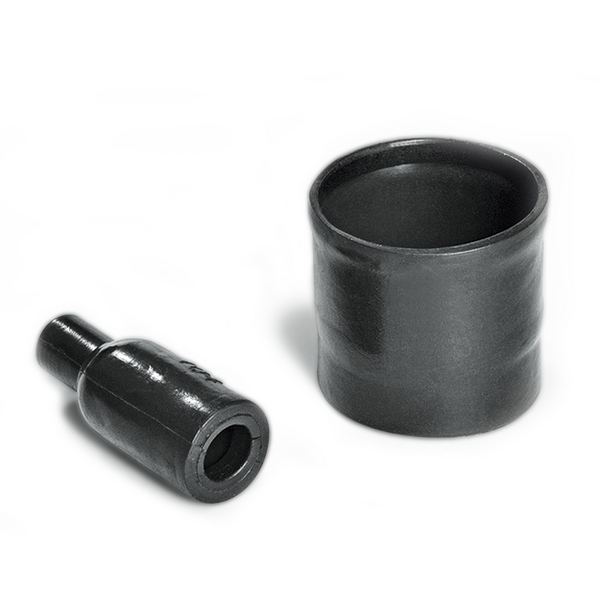

Bottle Shapes, MIL-Style
Art.-No. 401-01044 | 101-4-J-PO-X-BK | Details

100 series supplied / fully recovered.

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Bottle Shapes, MIL-Style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool	H6100, CHG900
Colour	Black (BK)
Local order number	101-4-J
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	101-4-J-PO-X-BK
Pack Cont.	1pc.
Package Content packed in	Bag
Product Family	Helashrink 100 Series, with rib
Product Group	Bottle Shapes, MIL-Style
Type	101-4-J

Product Dimensions


Flexibility	Flexible
HW ± 20%	2mm
JW ± 20%	2mm
P ± 10%	67mm
R max	35mm
S nom	17.8mm
T ± 20%	1mm
Weight/Unit	0.005kg
∅H max b	17.8mm
∅H min a	31mm
∅J max b	7.1mm
∅J min. a	31mm

Downloads

Specifications

Dielectric Strength	18kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Minimum Shrink Temperature - °C	+135 °C
Nato number	5970-01-029-1381
Operating Temperature	-55 °C to +135 °C
ROHS compliant	Yes
Specifications
Tensile Strength	19MPa
UV-Stabilised	No

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660401268
Packaging 1 - Height (m)	0.03m
Packaging 1 - Length (m)	0.16m
Packaging 1 - Qty	1
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.00048m³
Packaging 1 - Weight (kg)	0.005kg
Packaging 1 - Width (m)	0.10m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
