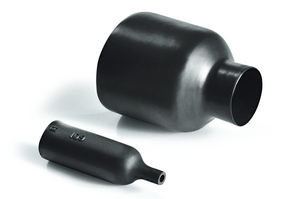

Bottle Shapes
Art.-No. 401-02019 | 102-2-B7WM250-PO-X-BK | Details

100 series supplied / fully recovered.

Strain relief for connector cable
Easy re-entry for repair when combined with hot melt adhesive

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Bottle Shapes >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool	H6100, CHG900
Colour	Black (BK)
Local order number	102-2-B7WM250
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	102-2-B7WM250-PO-X-BK
Pack Cont.	1pc.
Package Content packed in	Bag
Product Family	Helashrink 100 Series
Product Group	Bottle Shapes
Type	102-2-B7WM250

Product Dimensions


Flexibility	Semi rigid
HW ± 20%	1.8mm
JW ± 30%	1.8mm
P ± 10%	73.7mm
R/S nom	43.2mm
S nom	21mm
Weight/Unit	0.009kg
∅H max b	22.4mm
∅H min a	30mm
∅J max b	8.4mm
∅J min. a	18mm

Downloads

Specifications

Adhesive	WM250
Dielectric Strength	14kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Minimum Shrink Temperature - °C	+135 °C
Operating Temperature	-55 °C to +135 °C
ROHS compliant	Yes
Shelf Life	5 years
Specifications
Tensile Strength	13MPa

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660401701
Packaging 1 - Height (m)	0.040m
Packaging 1 - Length (m)	0.160m
Packaging 1 - Qty	1
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.00064m³
Packaging 1 - Weight (kg)	0.009001kg
Packaging 1 - Width (m)	0.100m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
