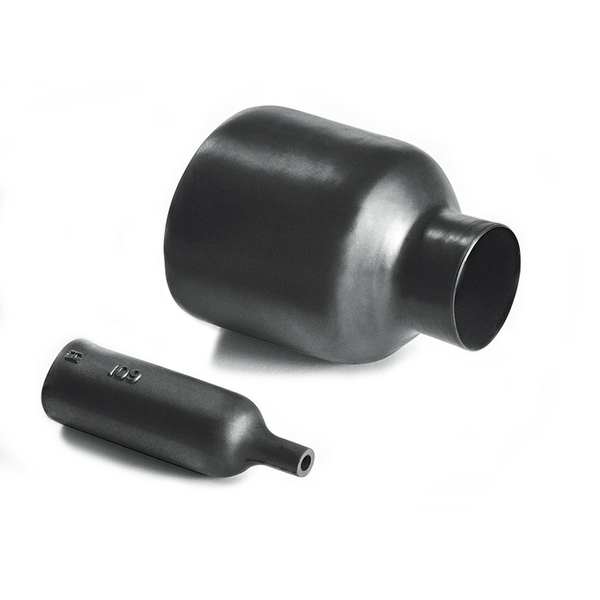

Bottle Shapes
Art.-No. 401-09004 | 109-1-J-PO-X-BK |  Details

100 series supplied / fully recovered.

    • Strain relief for connector cable
    • Easy re-entry for repair when combined with hot melt adhesive
    • For mechanical protection and protection against environment impacts
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Local order number 109-1-J
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 109-1-J-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in Bag
    Product Family Helashrink 100 Series, without rib
    Product Group Bottle Shapes
    Type 109-1-J
    Variant Thick-Wall
    Flexibility Flexible
    HW ± 20% 2mm
    JW ± 30% 1.3mm
    P ± 10% 53.3mm
    R max 35.6mm
    S nom 7.6mm
    Weight/Unit 0.005kg
    ∅H max b 14.2mm
    ∅H min a 19.3mm
    ∅J max b 4.1mm
    ∅J min. a 8.1mm
    Dielectric Strength 18kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Minimum Shrink Temperature +135 °C
    Nato number 5970-99-618-6865, 5970-01-160-4250
    Operating Temperature -55 °C to +135 °C
    ROHS compliant Yes
    Specifications
    Tensile Strength 19MPa
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660406515
    Packaging 1 - Height (m) 0.030m
    Packaging 1 - Length (m) 0.160m
    Packaging 1 - Qty 1
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00048m³
    Packaging 1 - Weight (kg) 0.005kg
    Packaging 1 - Width (m) 0.100m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
