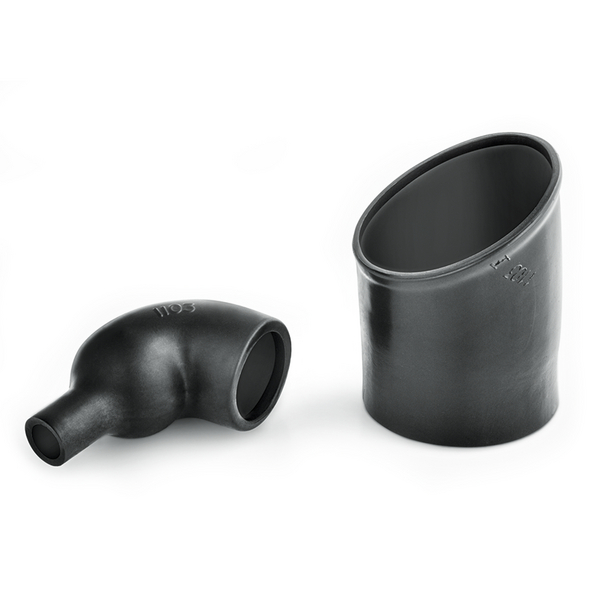

Right-Angle Shapes, MIL style
Art.-No. 411-03028 | 1103-4-J-PO-X-BK | Details

1108-4 supplied / fully recovered.

Used in conjunction with a circular grooved adaptor for strain relief

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Right-Angle Shapes, MIL style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	1103-4-J
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	1103-4-J-PO-X-BK
Pack Cont.	1pc.
Package Content packed in	Bag
Product Family	Helashrink 1100 Series, with rib
Product Group	Right-Angle Shapes, MIL style
Type	1103-4-J
Variant	For plug

Product Dimensions


Angle	90
Flexibility	Flexible
HW ± 20%	1.8mm
JW ± 30%	1.8mm
M nom	22.9mm
P ± 10%	43.2mm
R ± 10%	35.6mm
S nom	12.7mm
T ± 20%	1mm
V max	3.3mm
Weight/Unit	0.007kg
∅H max b	22.4mm
∅H min a	36mm
∅J max b	8.4mm
∅J min. a	36mm

Downloads

Specifications

Dielectric Strength	18kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Minimum Shrink Temperature	+135 °C
Nato number	5970-01-095-0886
Operating Temperature	-55 °C to +135 °C
ROHS compliant	Yes
Specifications
Tensile Strength	19MPa
UV-Stabilised	No

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660407994
Packaging 1 - Height (m)	0.040m
Packaging 1 - Length (m)	0.160m
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.00077m³
Packaging 1 - Weight (kg)	0.007kg
Packaging 1 - Width (m)	0.120m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
