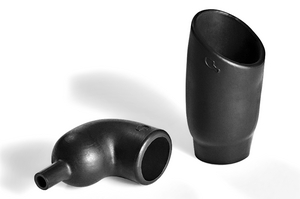

Right-Angle Shapes, VG-Style
Art.-No. 411-14004
| 1114-1-G-PO-X-BK
|
Details
- Provides connector cable strain relief
- Can be installed on the connector rear thread or plain shaft
- Allows easy re-entry for repair when combined with a hot melt adhesive
Request your individual offer now
Request quote
More products in this product group:
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Colour | Black (BK) |
| Local order number | 1114-1-G |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | 1114-1-G-PO-X-BK |
| Pack Cont. | 1pc. |
| Package Content packed in | Bag |
| Product Family | Helashrink 1100 Series, without rib, thick wall |
| Product Group | Right-Angle Shapes, VG-Style |
| Type | 1114-1-G |
| Variant | Thick-Wall |
Download
| Designation as per VG-Norm | VG 95343 T06 J 004 A |
| Dielectric Strength | 14kV/mm |
| Dielectric Strength test method | ASTM D2671 |
| Flammability | ASTM D635 |
| Minimum Shrink Temperature | +135 °C |
| Nato number | 5970-12-328-0756 |
| Operating Temperature | -75 °C to +150 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | VG 95343-6:2009-12 |
| Tensile Strength | 15MPa |
