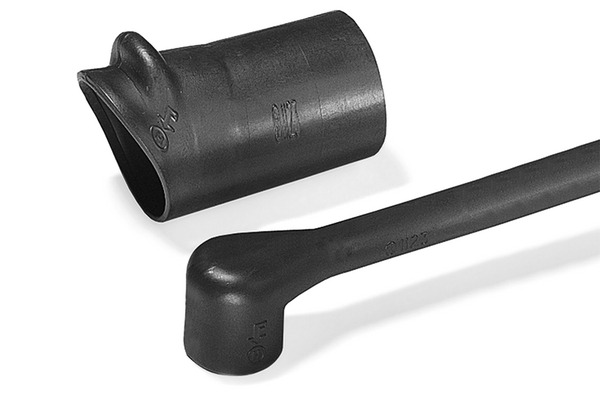

Right-Angle Shapes, VG style/MIL style
Art.-No. 411-23003 | 1123-1-GW24-PO-X-BK | Details

1123-1-G Supplied and recovered.

Lightweight, low profile, compact strain relief and mechanical protection
Typically used on airborne harnesses

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Right-Angle Shapes, VG style/MIL style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	1123-1-GW24
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	1123-1-GW24-PO-X-BK
Pack Cont.	1pc.
Package Content packed in	Bag
Product Family	Helashrink 1100 Series, with rib, low profile
Product Group	Right-Angle Shapes, VG style/MIL style
Shrink Ratio	up to 3:1
Type	1123-1-GW24
Variant	For plug

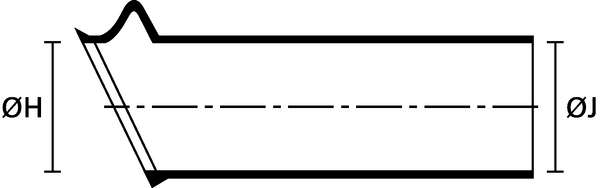

Product Dimensions


Angle	90
Flexibility	Semi rigid
HW ± 20%	1.8mm
JW ± 30%	1.1mm
P ± 10%	89mm
R ± 10%	21mm
S nom	57mm
T ± 10%	1mm
T ± 20%	1.00mm
V max	3.3mm
V ± 10%	3mm
Weight/Unit	0.010kg
∅H max b	19mm
∅H min a	29mm
∅J max b	8.5mm
∅J min. a	29mm

Downloads

Specifications

Adhesive	W24
Dielectric Strength	14kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Minimum Shrink Temperature	+135 °C
Operating Temperature	-75 °C to +150 °C
ROHS compliant	Yes
Shelf Life	5 years
Specifications
Tensile Strength	15MPa

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660411977
Minimum Order Quantity	25
Packaging 1 - Height (m)	0.025m
Packaging 1 - Length (m)	0.150m
Packaging 1 - Qty	1
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.00038m³
Packaging 1 - Weight (kg)	0.010001kg
Packaging 1 - Width (m)	0.100m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
