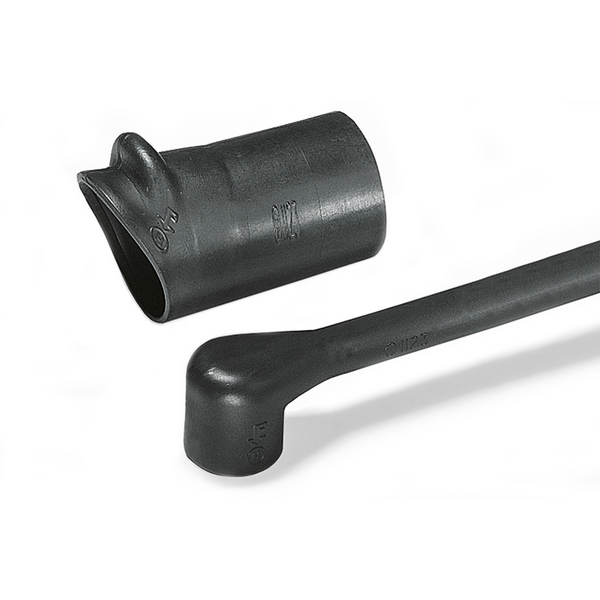

Right-Angle Shapes, VG style/MIL style
Art.-No. 411-27023 | 1127-52-L-FPMX-BK | Details

1123-1-G Supplied and recovered.

Lightweight, low profile, compact strain relief and mechanical protection
Typically used on airborne harnesses

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Right-Angle Shapes, VG style/MIL style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Material	Fluoroelastomer, cross-linked (FPMX)
PART DESCRIPTION	1127-52-L-FPMX-BK
Pack Cont.	1pc.
Package Content packed in	Bag
Product Family	Helashrink 1100 Series, with rib, low profile
Product Group	Right-Angle Shapes, VG style/MIL style
Type	1127-52-L
Variant	For plug

Product Dimensions


Angle	90
HW ± 20%	2.3mm
JW ± 30%	1.4mm
P ± 10%	224.5mm
R ± 10%	30mm
S nom	173.5mm
T ± 10%	1.7mm
T ± 20%	1.7mm
V max	3.3mm
Weight/Unit	0.030kg
∅H max b	41.5mm
∅H min a	50mm
∅J max b	14.5mm
∅J min. a	26mm

Downloads

Specifications

Flammability	ASTM D635
Nato number	5970-01-133-9403
ROHS compliant	Yes
Shelf Life	5 years
Specifications
UV-Stabilised	No

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660678660
Packaging 1 - Height (m)	0.040m
Packaging 1 - Length (m)	0.200m
Packaging 1 - Qty	1
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.0016m³
Packaging 1 - Weight (kg)	0.030001kg
Packaging 1 - Width (m)	0.200m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
