Right-Angle Shape VG-Style/MIL Style with Rib, Low Profile for Plugs black, PO-X, up to 3:1
Art.-No. 411-29180 | 1129-1-G-PO-X-BK | Details

1123-1-G Supplied and recovered.

Lightweight, low profile, compact strain relief and mechanical protection
Typically used on airborne harnesses

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

Downloads CAD-Download

More products in this product group:

Right-Angle Shapes, VG style/MIL style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	VG95343T06F009A
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	1129-1-G-PO-X-BK
Pack Cont.	1pc.
Package Content packed in	pcs.
Product Family	Helashrink 1100 Series, with rib, low profile
Product Group	Right-Angle Shapes, VG style/MIL style
Short Description	Right-Angle Shape VG-Style/MIL Style with Rib, Low Profile for Plugs black, PO-X, up to 3:1
Shrink Ratio	up to 3:1
Type	1129-1-G
Variant	For plug

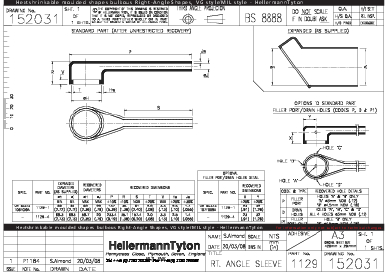

Product Dimensions


Angle	90
Flexibility	Semi rigid
HW ± 20%	2.5mm
JW ± 20%	1.4mm
JW ± 30%	1.4mm
P ± 10%	137.0mm
R ± 10%	35.0mm
S nom	61.0mm
T ± 10%	2.0mm
T ± 20%	2.0mm
V max	3.3mm
V ± 10%	3.0mm
Weight/Unit	0.01kg
∅H max b	60.0mm
∅H min a	69.0mm
∅J max b	20.0mm
∅J min. a	69.0mm

Downloads

Specifications

Designation as per VG-Norm	VG 95343 T06 F 009 A
Dielectric Strength	14kV/mm
Dielectric Strength test method	ASTM D2671
ELV compliant Dir. Art. 4 (2)	YES
Flammability	ASTM D635
Hazardous Goods	No
Minimum Shrink Temperature	+135 °C
Operating Temperature	-75 °C to +150 °C
ROHS compliant	Yes
Shelf Life	5 years
Specifications
Specifications	VG 95343-6

Logistics and Packaging


Country of Origin	GB
Customs Number	39174000
GTIN-13 / EAN	5022660635250
Packaging 1 - Height (m)	0.07m
Packaging 1 - Length (m)	0.13m
Packaging 1 - Qty	1
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.00091m³
Packaging 1 - Weight (kg)	0.010001kg
Packaging 1 - Width (m)	0.1m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
