Right-Angle Shapes, VG style
Art.-No. 411-34017 | 1134-1-G-PO-X-BK | Details

1135-1-G Supplied and recovered.

Use in applications of partially loaded connectors with small cable diameters
Tail design for easy orientation prior to cooling
Strain relief for connector cable

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Right-Angle Shapes, VG style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	1134-1-G
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	1134-1-G-PO-X-BK
Pack Cont.	1pc.
Package Content packed in	Bag
Product Family	Helashrink 1100 Series, with rib, low profile, high ratio
Product Group	Right-Angle Shapes, VG style
Shrink Ratio	up to 3:1
Type	1134-1-G
Variant	For plug

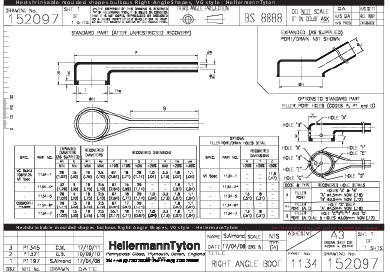

Product Dimensions


Angle	90
Flexibility	Semi rigid
HW ± 20%	1.8mm
JO ± 10%	29mm
JW ± 20%	1.1mm
P ± 10%	67mm
R ± 10%	18mm
S nom	29mm
T ± 10%	1mm
T ± 20%	1mm
V max	3.3mm
V ± 10%	3mm
Weight/Unit	0.004kg
∅H max b	19mm
∅H min a	26mm
∅J max b	2.5mm
∅J min. a	7.5mm

Downloads

Specifications

Dielectric Strength	14kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Minimum Shrink Temperature	+135 °C
Nato number	5970-12-305-9878
Operating Temperature	-75 °C to +150 °C
ROHS compliant	Yes
Shelf Life	5 years
Specifications
Tensile Strength	15MPa

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660413971
Packaging 1 - Height (m)	0.020m
Packaging 1 - Length (m)	0.150m
Packaging 1 - Qty	1
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.0003m³
Packaging 1 - Weight (kg)	0.004001kg
Packaging 1 - Width (m)	0.100m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
