Right-Angle Shapes, VG-Style
Art.-No. 411-54012 | 1154-4-H-PO-X-BK | Details

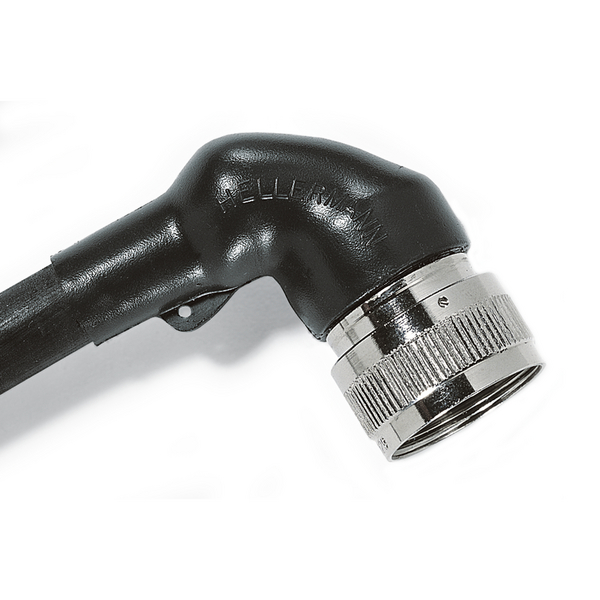

1152-4-G recovered on to a connector.

Used in conjunction with a circular grooved adaptor
Provides strain relief and an environmental seal

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Right-Angle Shapes, VG-Style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	1154-4-H
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	1154-4-H-PO-X-BK
Pack Cont.	1pc.
Package Content packed in	Bag
Product Family	Helashrink 1100 Series, with rib
Product Group	Right-Angle Shapes, VG-Style
Type	1154-4-H
Variant	For plug

Product Dimensions


Angle	90
Flexibility	Flexible
HW ± 20%	1.5mm
JW ± 30%	0.8mm
M nom	19mm
P ± 20%	41.0mm
R ± 10%	27mm
S nom	12mm
V max	1.0mm
V ± 20%	1mm
Weight/Unit	0.004kg
∅H max b	14.5mm
∅H min a	30mm
∅J max b	6mm
∅J min. a	30mm

Downloads

Specifications

Designation as per VG-Norm	VG 95343 T19 A 002 A
Dielectric Strength	15kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Halogen-free	Yes
Limited Fire Hazard	No
Minimum Shrink Temperature	+135 °C
Nato number	5970-99-780-0450
Operating Temperature	-55 °C to +105 °C
ROHS compliant	Yes
Shelf Life	5 years
Specifications
Tensile Strength	10MPa
UV-Stabilised	No

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660415449
Packaging 1 - Height (m)	0.030m
Packaging 1 - Length (m)	0.120m
Packaging 1 - Qty	1
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.00036m³
Packaging 1 - Weight (kg)	0.004kg
Packaging 1 - Width (m)	0.100m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
