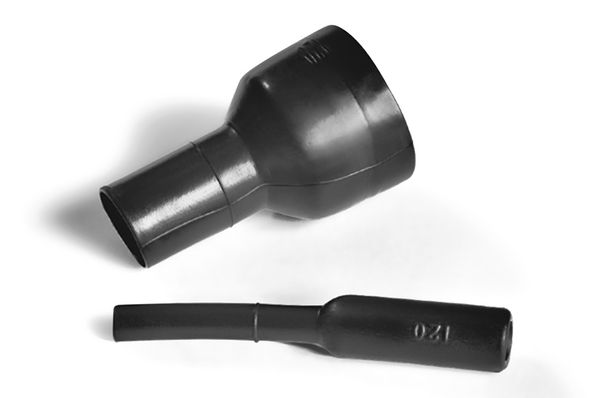

Bottle Shapes
Art.-No. 401-20014 | 120-2-G-PO-X-BK |  Details

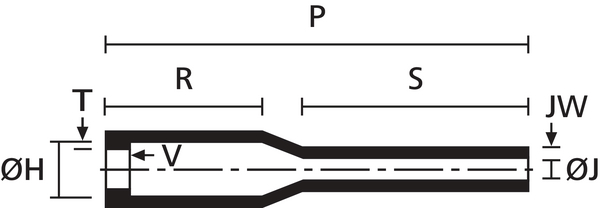

120-42-G supplied / fully recovered.

    • Long tail providing extended strain relief for small diameter wires
    • Can be supplied with or without rib
    • Can be supplied in various material / adhesive combinations
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Local order number 120-2-G
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 120-2-G-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in Bag
    Product Family Helashrink 120 Series, with and without rib
    Product Group Bottle Shapes
    Type 120-2-G
    Flexibility Semi rigid

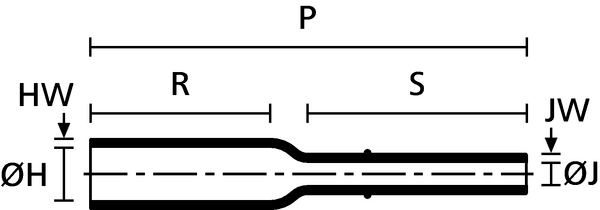

    HW ± 20% 1.3mm
    JW ± 20% 1.3mm
    P ± 10% 60.9mm
    R nom 24mm
    R ± 10% 24mm
    S nom 32.0mm
    W ± 20 % 1.3mm
    Weight/Unit 0.002kg

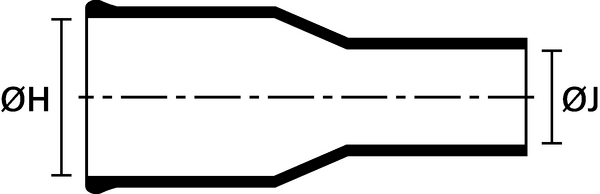

    ∅H max b 7mm
    ∅H min a 20.3mm
    ∅J max b 3mm
    ∅J min. a 10.2mm
    Minimum Shrink Temperature +135 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660653230
    Packaging 1 - Height (m) 0.020m
    Packaging 1 - Length (m) 0.130m
    Packaging 1 - Qty 1
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00026m³
    Packaging 1 - Weight (kg) 0.002001kg
    Packaging 1 - Width (m) 0.100m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
