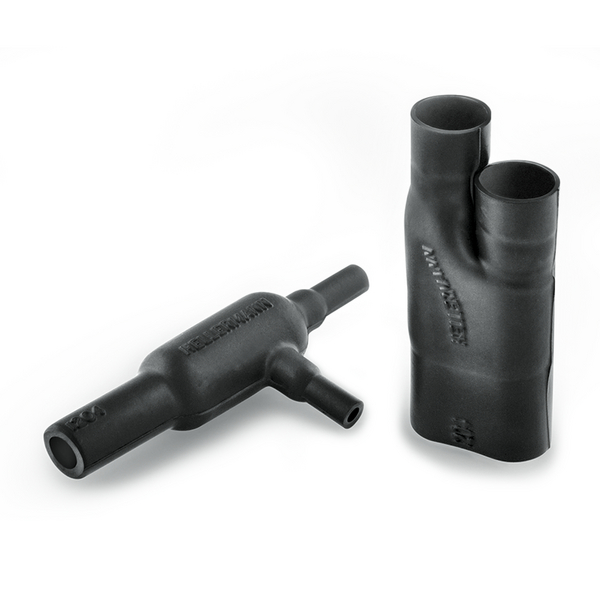

T-Shapes, VG-Style
Art.-No. 412-04001 | 1204-1-B7-PO-X-BK | Details

1204-1 supplied / fully recovered.

4-way outlet shape
Cable sealing, strain relief and mechanical protection

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

T-Shapes, VG-Style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	1204-1-B7
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	1204-1-B7-PO-X-BK
Pack Cont.	1pc.
Package Content packed in	Bag
Product Family	Helashrink 1200 Series, off-set
Product Group	T-Shapes, VG-Style
Type	1204-1-B7
Variant	For 2-core cables

Product Dimensions


Flexibility	Semi rigid
HW ± 20%	1.5mm
JW ± 20%	1mm
KW ± 20 %	1mm
M nom	27mm
P ± 10%	56mm
R ± 10%	33mm
Weight/Unit	0.003kg
∅H max b	7.5mm
∅H min a	13mm
∅J max b	4mm
∅J min. a	6.5mm
∅K max. b	4mm
∅K min. a	6.5mm

Downloads

Specifications

Dielectric Strength	14kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Minimum Shrink Temperature	+135 °C
Nato number	5970-00-104-2650
Operating Temperature	-75 °C to +150 °C
ROHS compliant	Yes
Shelf Life	5 years
Specifications
UV-Stabilised	No

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660419041
Packaging 1 - Height (m)	0.010m
Packaging 1 - Length (m)	0.160m
Packaging 1 - Qty	1
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.00016m³
Packaging 1 - Weight (kg)	0.003001kg
Packaging 1 - Width (m)	0.100m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
