T-Shapes, VG style/MIL style
Art.-No. 412-09009 | 1209-1-H-PO-X-BK | Details

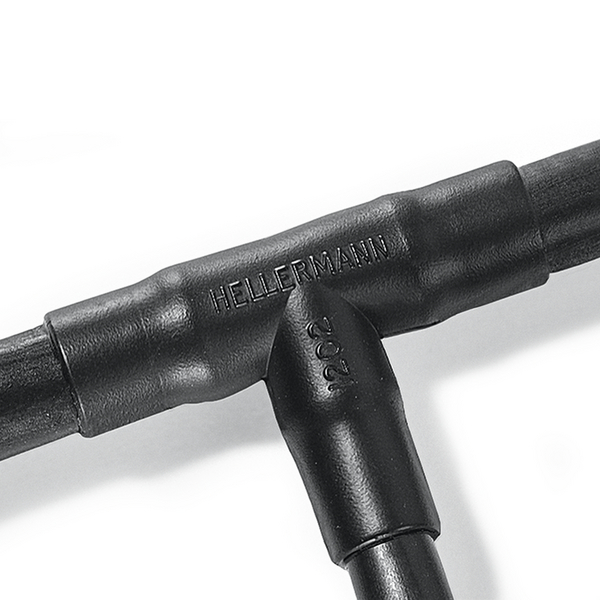

1202-1-G recovered onto a cable harness.

4-way outlet shape
Cable sealing, strain relief and mechanical protection

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

T-Shapes, VG style/MIL style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	1209-1-H
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	1209-1-H-PO-X-BK
Pack Cont.	1pc.
Package Content packed in	Bag
Product Family	Helashrink 1200 Series
Product Group	T-Shapes, VG style/MIL style
Type	1209-1-H
Variant	For 2-core cables

Product Dimensions


Flexibility	Semi rigid
HW ± 20%	2.5mm
HW ± 30%	2.5mm
JW ± 20%	2.5mm
JW ± 30%	2.5mm
KW ± 20 %	1.5mm
M nom	22mm
P ± 10%	108mm
R ± 10%	54mm
S ± 10%	38.6mm
Weight/Unit	0.019kg
∅H max b	12.4mm
∅H min a	27mm
∅J max b	12.4mm
∅J min. a	27mm
∅K max. b	6mm
∅K min. a	13.2mm

Downloads

Specifications

Dielectric Strength	14kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Minimum Shrink Temperature	+135 °C
Operating Temperature	-75 °C to +150 °C
ROHS compliant	Yes
Shelf Life	5 years
Specifications
UV-Stabilised	No

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660420115
Minimum Order Quantity	25
Packaging 1 - Height (m)	0.040m
Packaging 1 - Length (m)	0.200m
Packaging 1 - Qty	1
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.00112m³
Packaging 1 - Weight (kg)	0.019001kg
Packaging 1 - Width (m)	0.140m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
