Low Profile Transition Boots
Art.-No. 422-40124 | 12273162-220-PEEX-BK | Details

412H622-625 Series supplied / fully recovered.

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Low Profile Transition Boots >

Base Data

Application	Heat Shrinkable Moulded Shapes for use in Electical and Electronic Cable Harness Applications
Application Tool	H6100, E4500, CHG900
Colour	Black (BK)
Local order number	12273162-220
Material	Polyester elastomer cross-linked (PEEX)
PART DESCRIPTION	12273162-220-PEEX-BK
Pack Cont.	5pcs.
Package Content packed in	Bag
Product Family	Helashrink 412H Series, side breakout
Product Group	Low Profile Transition Boots
Shrink Ratio	3:1
Type	12273162-220
Variant	For 2-core cables

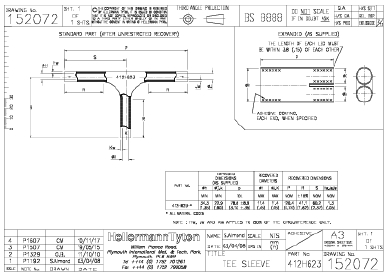

Product Dimensions


Flexibility	Semi rigid
HO/JO/KO ± 10%	41.1mm
P nom.	12.3mm
P ± 10%	12.3mm
R/S nom	6.1mm
W nom.	1.3mm
Weight/Unit	0.013kg
∅H max b	11.4mm
∅H min a	34.2mm
∅J max b	11.4mm
∅J min. a	22.8mm
∅J/K/L max. b	11.4mm
∅J/K/L min. a	22.8mm
∅K max. b	11.4mm
∅K min. a	22.8mm

Downloads

Specifications

Dielectric Strength	20kV/mm
Dielectric Strength test method	IEC 243
Flammability	ASTM D635
Minimum Shrink Temperature - °C	+100 °C
Operating Temperature	-55 °C to 120 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660682148

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
