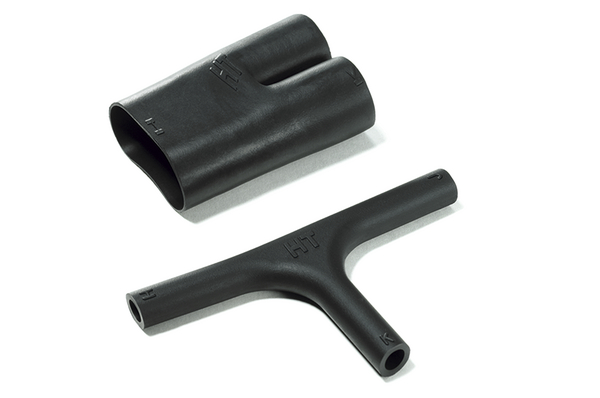

Low Profile Transition Boots
Art.-No. 422-40215 | 12273162-310-PO-X-BK | Details

412H622-625 Series supplied / fully recovered.

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Low Profile Transition Boots >

Base Data

Application	Heat Shrinkable Moulded Shapes for use in Electical and Electronic Cable Harness Applications
Application Tool	H6100
Colour	Black (BK)
Local order number	12273162-310
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	12273162-310-PO-X-BK
Pack Cont.	5pcs.
Package Content packed in	Bag
Product Family	Helashrink 412H Series, side breakout
Product Group	Low Profile Transition Boots
Shrink Ratio	3:1
Type	12273162-310
Variant	For 2-core cables

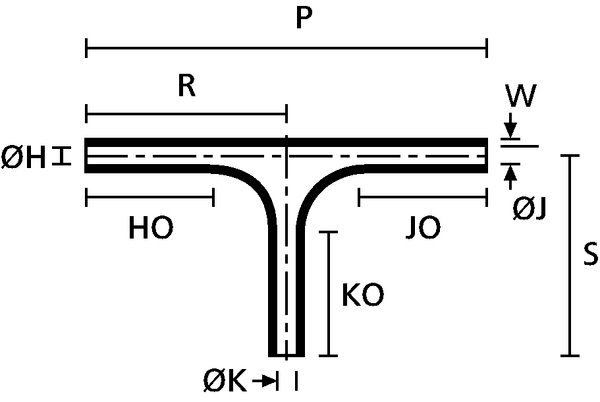

Product Dimensions


Flexibility	Semi rigid
HO/JO/KO ± 10%	63.5mm
P nom.	175.7mm
P ± 10%	175.7mm
R/S nom	87.8mm
W nom.	1.5mm
Weight/Unit	0.200kg
∅H max b	20mm
∅H min a	60.1mm
∅J max b	20mm
∅J min. a	40.1mm
∅K max. b	20mm
∅K min. a	40.1mm

Downloads

Specifications

Dielectric Strength	20kV/mm
Dielectric Strength test method	IEC 243
Flammability	ASTM D635
Minimum Shrink Temperature - °C	+100 °C
Operating Temperature	-55 °C to 120 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660687549

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721

Accessories

H6100 391-00110
Electrical Hot Air Tool
