Long Outlet Shape, VG style
Art.-No. 401-29007 | 129-1-J-PO-X-BK |  Details

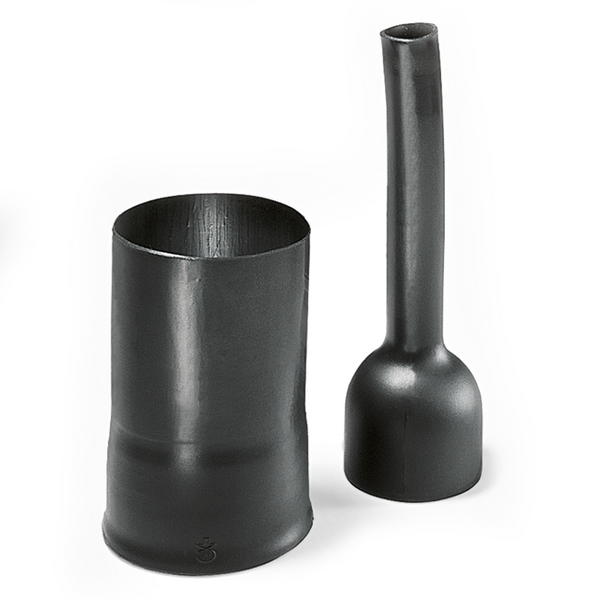

135-1-G as supplied / fully recovered.

    • Low profile and lightweight
    • Typically used on airborne harnesses
    • Rib locates on circular backshell
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Local order number 129-1-J
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 129-1-J-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in Bag
    Product Family Helashrink 130 Series, with rib, low profile
    Product Group Long Outlet Shape, VG style
    Type 129-1-J
    Variant For plug
    HW ± 20% 1.5mm
    JW ± 30% 1.1mm
    P ± 10% 76mm
    S nom 57mm
    T ± 10% 1mm
    T ± 20% 1.0mm
    V max 3.3mm
    V ± 10% 3mm
    Weight/Unit 0.004kg
    ∅H max b 12mm
    ∅H min a 22mm
    ∅J max b 6.5mm
    ∅J min. a 22mm
    Minimum Shrink Temperature +135 °C
    Nato number 5970-01-120-3710
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660422287
    Packaging 1 - Height (m) 0.030m
    Packaging 1 - Length (m) 0.160m
    Packaging 1 - Qty 1
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00048m³
    Packaging 1 - Weight (kg) 0.004001kg
    Packaging 1 - Width (m) 0.100m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
