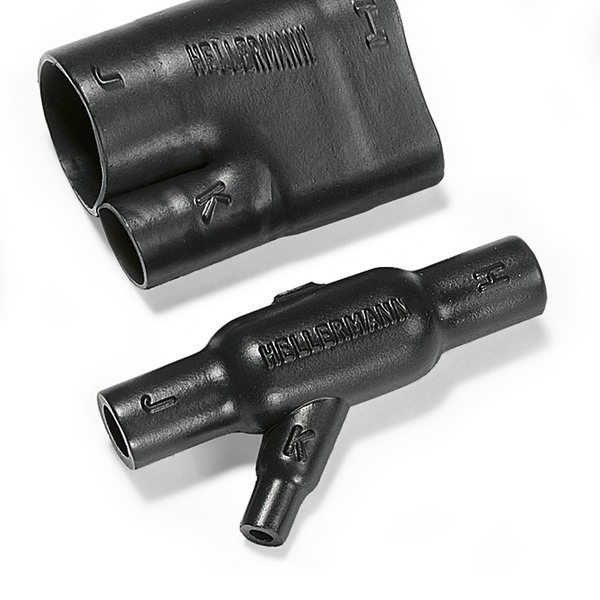

Angled T-Shapes, VG style
Art.-No. 413-02001 | 1302-1-B7-PO-X-BK | Details

1303-1-G supplied / fully recovered.

Branching part 45 Y-joint
Mechanical tension relief for cable harnesses

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Angled T-Shapes, VG style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	1302-1-B7
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	1302-1-B7-PO-X-BK
Pack Cont.	1pc.
Package Content packed in	Bag
Product Family	Helashrink 1300 Series, 30° & 45° angle
Product Group	Angled T-Shapes, VG style
Type	1302-1-B7
Variant	For 2-core cables

Product Dimensions


Angle	45
Flexibility	Semi rigid
HW ± 20%	2.5mm
HW ± 30%	2.5mm
JW ± 20%	2.5mm
JW ± 30%	2.5mm
KW ± 20 %	1mm
P ± 10%	92mm
R nom	41mm
R ± 10%	41mm
S nom	36mm
S ± 10%	36mm
Weight/Unit	0.01kg
∅H max b	13mm
∅H min a	27mm
∅J max b	13mm
∅J min. a	27mm
∅K max. b	3.5mm
∅K min. a	7mm

Downloads

Specifications

Dielectric Strength	14kV/mm
Dielectric Strength test method	ASTM D2671
ELV compliant Dir. Art. 4 (2)	YES
Flammability	ASTM D635
Hazardous Goods	No
Minimum Shrink Temperature	+135 °C
Nato number	5970-99-527-3461, 5970-99-199-2296, 5970-00-950-6338
Operating Temperature	-75 °C to +150 °C
ROHS compliant	Yes
Shelf Life	5 years
Specifications
UV-Stabilised	No

Logistics and Packaging


Country of Origin	GB
Customs Number	39174000
GTIN-13 / EAN	5022660423239
Packaging 1 - Height (m)	0.03m
Packaging 1 - Length (m)	0.13m
Packaging 1 - Qty	1
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.00039m³
Packaging 1 - Weight (kg)	0.010001kg
Packaging 1 - Width (m)	0.1m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
