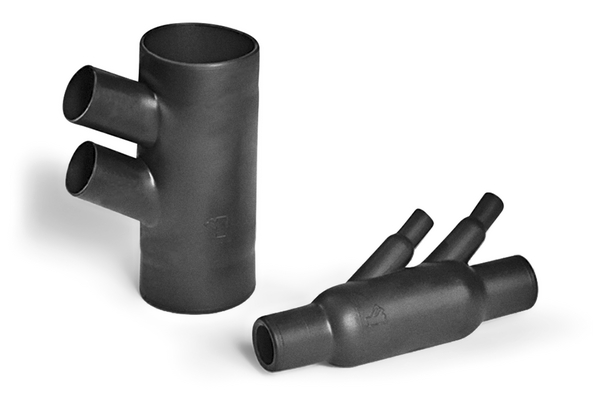

Double T-Shapes
Art.-No. 413-10010 | 1310-1-JWM250-PO-X-BK |  Details

1310-1 supplied / fully recovered.

    • For cable harnesses needing specialised orientation
    • Strain relief, sealing and mechanical protection
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Local order number 1310-1-JWM250
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 1310-1-JWM250-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in Bag
    Product Family Helashrink 1310 Series, 30° angle
    Product Group Double T-Shapes
    Type 1310-1-JWM250
    Variant For 2-core cables
    Angle 30
    Flexibility Flexible

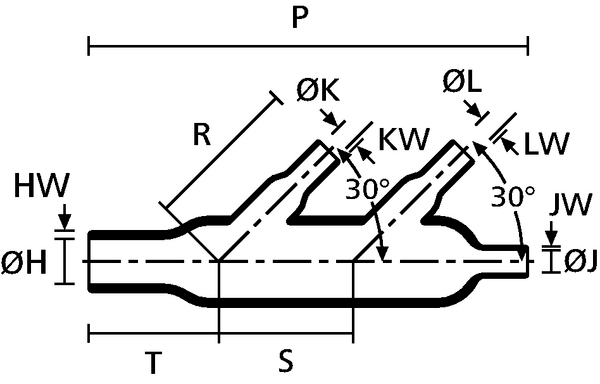

    HW ± 20% 2.5mm
    JW ± 20% 2.5mm
    KW ± 20 % 1.3mm
    P ± 10% 88.9mm
    R ± 10% 50.8mm
    S ± 10% 25.4mm
    T ± 10% 19.1mm
    Weight/Unit 0.016kg

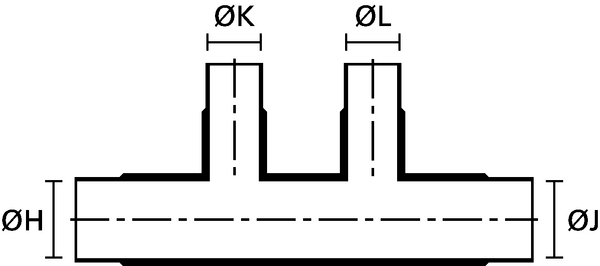

    ∅ L max. b 6.4mm
    ∅ L min. a 12.7mm
    ∅H max b 15.2mm
    ∅H min a 30.4mm
    ∅J max b 15.2mm
    ∅J min. a 30.4mm
    ∅K max. b 6.4mm
    ∅K min. a 12.7mm
    Adhesive WM250
    Flammability ASTM D635
    Minimum Shrink Temperature +135 °C
    Operating Temperature -55 °C to +135 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Tensile Strength 19MPa
    Country of Origin GB
    GTIN-13 / EAN 5022660424687
    Packaging 1 - Height (m) 0.040m
    Packaging 1 - Length (m) 0.200m
    Packaging 1 - Qty 1
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00096m³
    Packaging 1 - Weight (kg) 0.016001kg
    Packaging 1 - Width (m) 0.120m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
